Removing The Brake Disc Pccb Air Guide (Rear)
WARNING: This page is about a different variant/trim than selected.
Display: Air guide -1- for PCCB brake
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

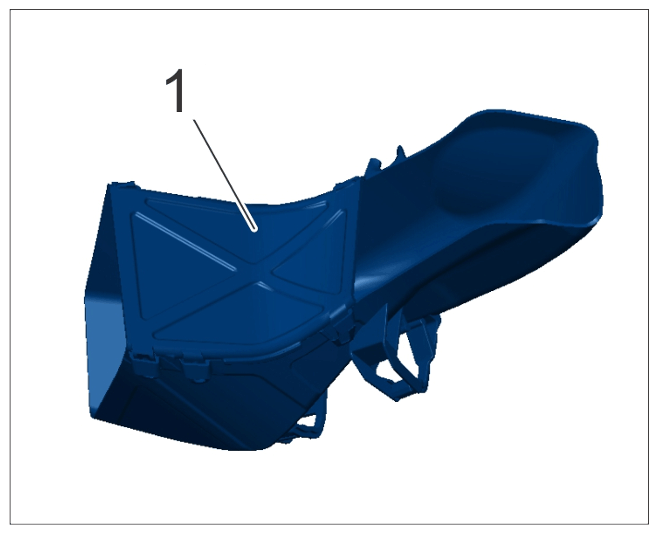

Air guide for PCCB brake
- Remove the air guide -1-
for the brake disc.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

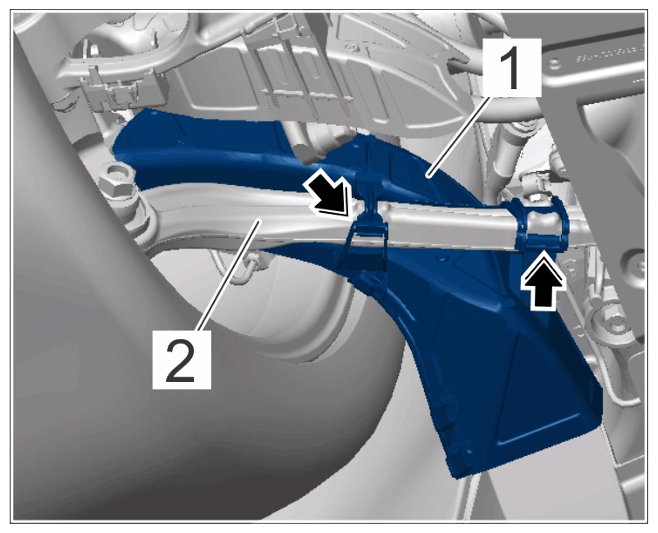

Brake-disc air guide
- 1.1 Open the fixing clips -Arrows-
and remove the air guide -1-
on the -2-
trailing arm.
