Removing Brake Disc Air Guide (Front)

WARNING: This page is about a different variant/trim than selected.

Remove cover on lower trailing arm -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

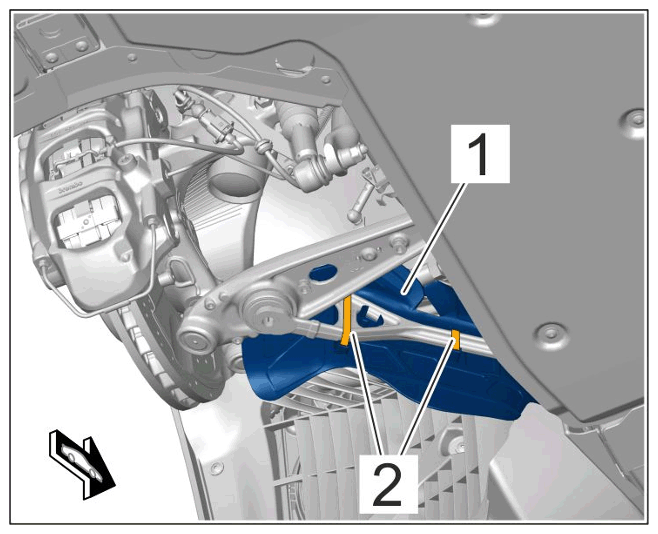

Mounting for cover on lower trailing arm
1. 1.1 Unscrew and remove screws -2- .
Remove tie-rod ball -1- from the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

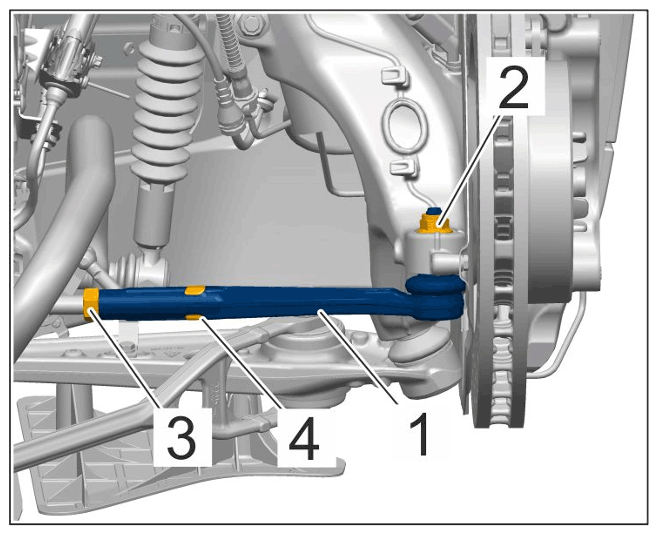

Mounting for tie-rod ball
1. 2.1 Unscrew nut -2- and counter using > 9546 - screwdriver at the ball-joint pin.
2. 2.2 Press off the tie-rod ball using > 9560 - press-out tool-1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

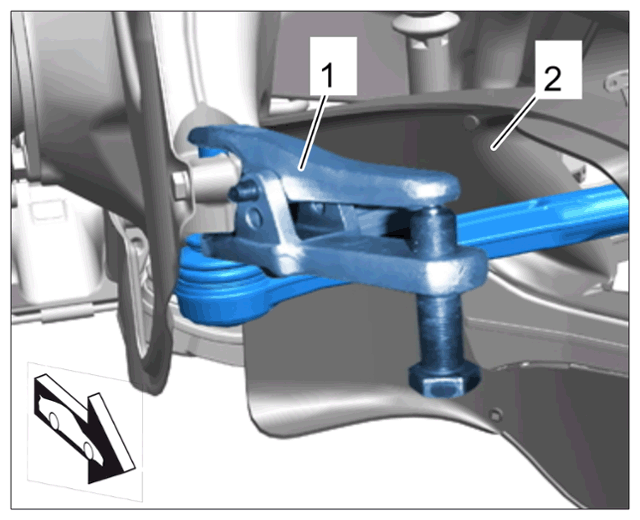

Press-out tool 9560 on tie-rod ball
Check the boot -1- of the tie-rod ball for signs of damage. If the boot is damaged, replace the tie-rod ball.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

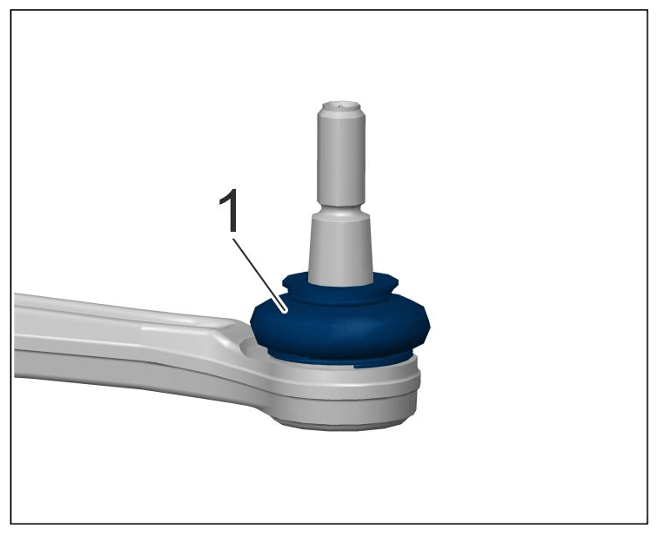

Tie-rod ball boot
Remove brake disc air guide -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

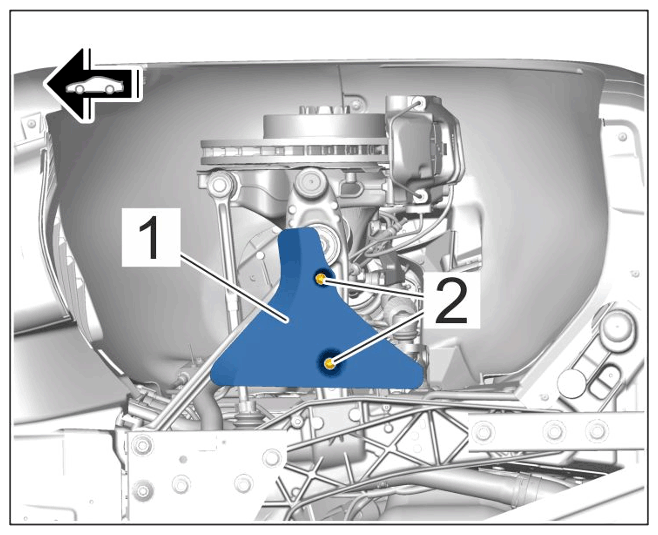

Mounting for brake disc air guide
1. 4.1 Cut tie-wrap -2- .
