Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Mounting saddle to body | Item 2: Hexagon-head bolt, M8 x 25 | Tightening torque | 23 Nm (17 ftlb.) | ||
|

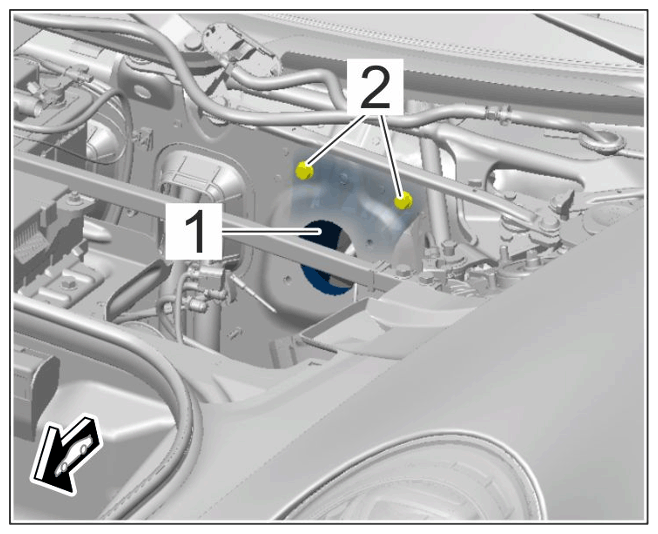

Fastening mounting saddle, top |
|||||
| Porsche Doppelkupplung (PDK) mounting saddle to body | Item 2: Hexagon nut, M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
|

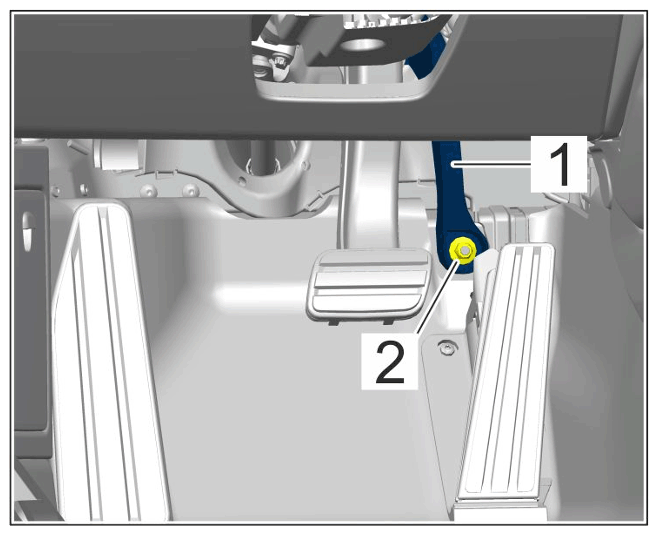

Fastening mounting saddle, bottom |
|||||
