Removing Mounting Saddle
WARNING: This page is about a different variant/trim than selected.

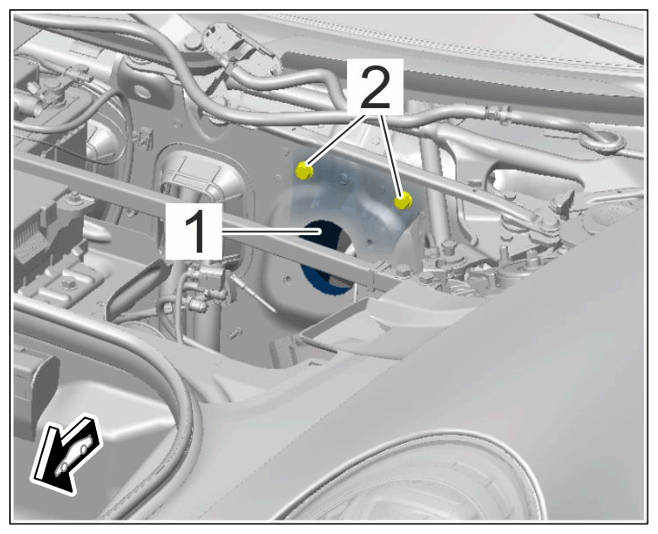

- Remove screws -2-
to separate mounting saddle -1-
from firewall upper section.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws on mounting saddle

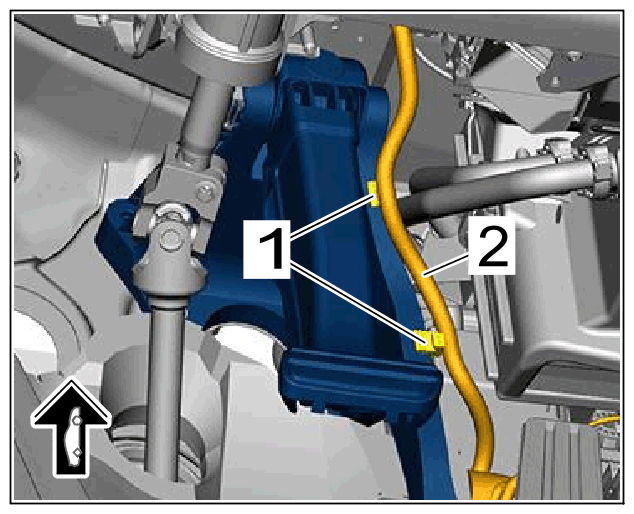

- Unclip clips -1-
and move electric line -2-
aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Clips
- Remove mounting saddle -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

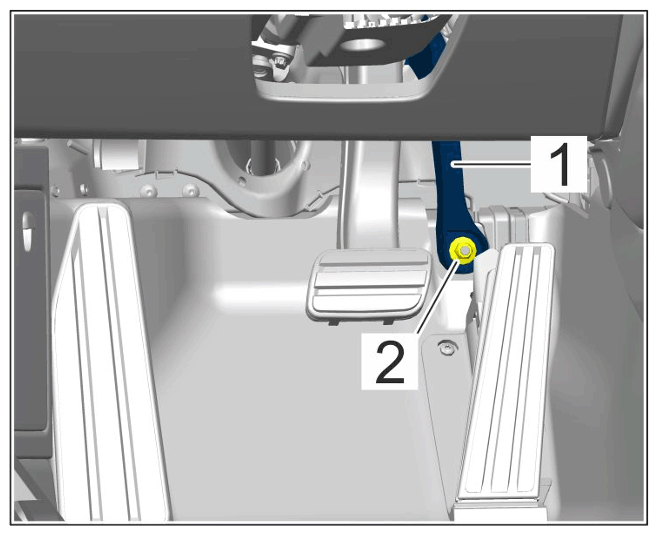

Mounting saddle nut
- 3.1 Unscrew nut -2-
.
- 3.2 Guide mounting saddle -1-
out of the footwell.
