Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove front footwell outlet vent (driver's side).

    805519 REMOVING AND INSTALLING FRONT FOOTWELL OUTLET VENT

    Information

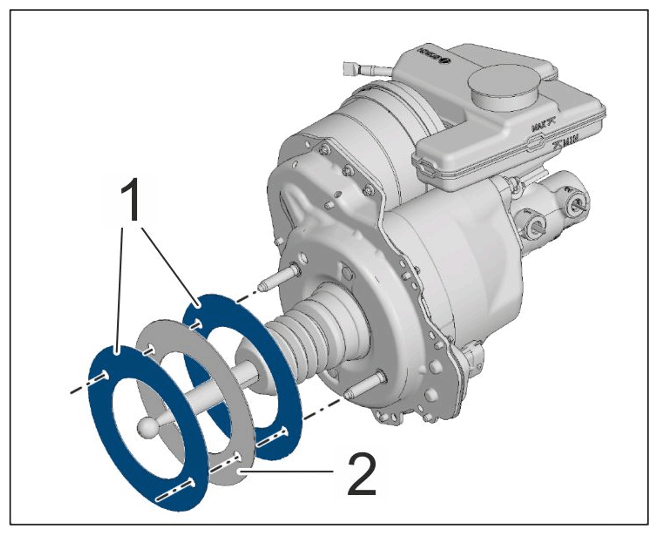

    G15521101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake booster seals

    1  Seals
    2  Spacer
    • The brake booster must be removed so that seals -1- can be replaced.
    • As soon as the brake booster is removed from the firewall, the seals -1- must be replaced.
  2. Remove brake booster.

    477019 REMOVING AND INSTALLING BRAKE BOOSTER
