Installing Mounting Saddle

1. Move mounting saddle -1-  into installation position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting saddle nut

   1. 1.1 Fit nut -2-  , but do not tighten yet.

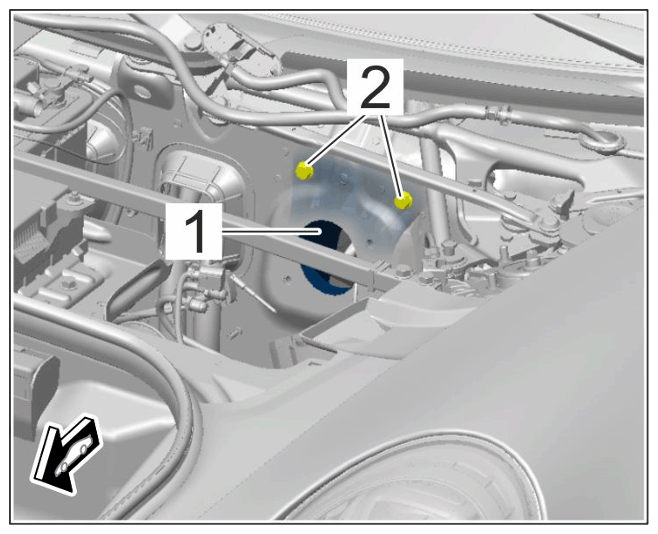

2. Screw in and tighten screws -2-  .

   > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on mounting saddle

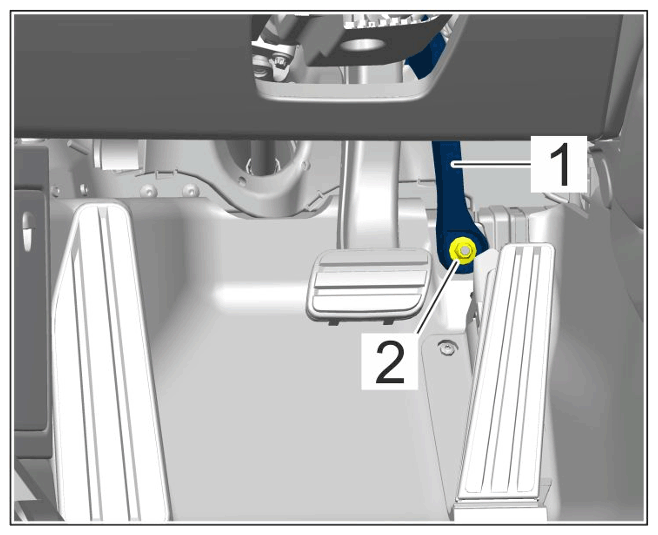

3. Tighten nut -2-  .

   > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower mounting saddle nut

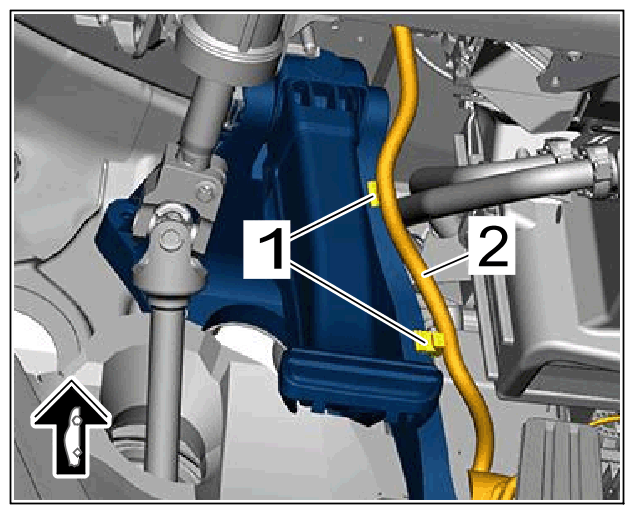

4. Position electric line -2-  and clip in clips -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
