Vent Line On Turbocharger And Holder On Cylinder Head

WARNING: This page is about a different variant/trim than selected.

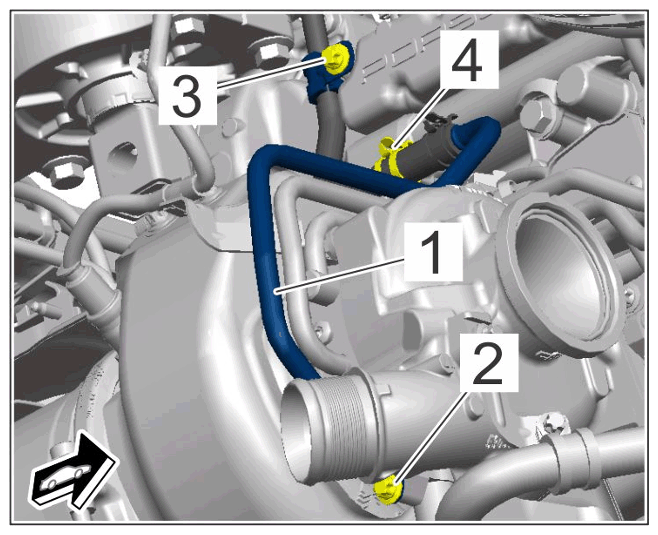

Fig 1: Vent Line On Turbocharger Components Location With Torque Specification - Bank 4-6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line on turbocharger, bank 4-6

1	Turbocharger vent line
2	Screw securing vent line to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
3	Screw securing vent line holder to cylinder head cover > Tightening torque 10 Nm (7.5 ftlb.)
4	Spring band clamp

Fig 1: Vent Line On Turbocharger Components Location With Torque Specification - Bank 4-6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line on turbocharger, bank 4-6

1	Turbocharger vent line
2	Screw securing vent line to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
3	Screw securing vent line holder to cylinder head cover > Tightening torque 10 Nm (7.5 ftlb.)
4	Spring band clamp
