Tank Vent Line On Turbochargers

WARNING: This page is about a different variant/trim than selected.
Fig 1: Tank Vent Line Components Location With Torque Specification - Bottom
G15507795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom

1  Screw, M6 - tank vent line > Tightening torque 10 Nm (7.5 ftlb.) -1-
2  Screws on turbocharger vent line holder
3  Holder
4  Tank vent line connection on turbocharger

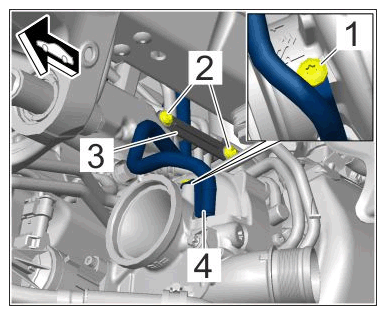

Fig 1: Tank Vent Line Components Location With Torque Specification - Bottom
G15507847Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom

1  Screw, M6 - tank vent line > Tightening torque 10 Nm (7.5 ftlb.) -1-
2  Screws on turbocharger vent line holder
3  Holder
4  Tank vent line connection on turbocharger
