Kinematics On Electronic Adjuster

WARNING: This page is about a different variant/trim than selected.

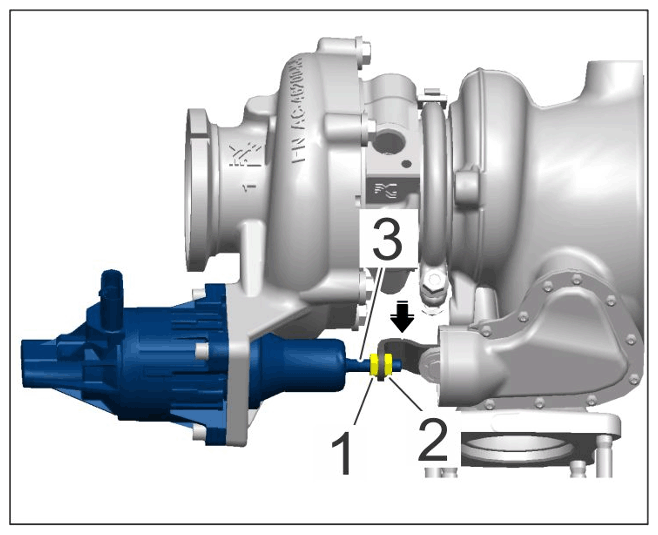

Fig 1: Pull Rod Of Kinematics On Electronic Adjuster Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull rod of kinematics on electronic adjuster

1	Adjusting nut > Tightening torque 6 Nm
2	Lock nut - counter when tightening the adjusting nut!
3	Pull rod
