Component Overview

WARNING: This page is about a different variant/trim than selected.

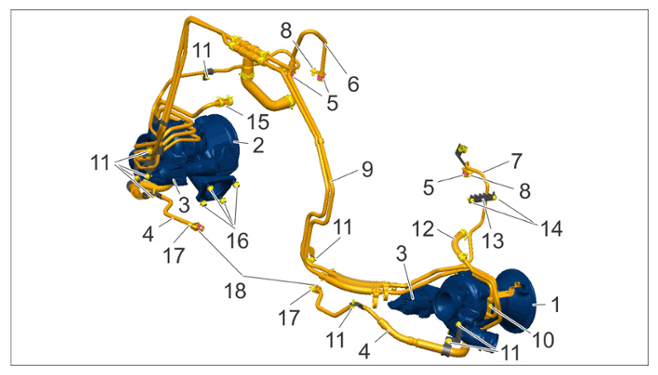

Fig 1: Turbocharger, Lines Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger, lines

1	Turbocharger, bank 1-3
2	Turbocharger, bank 4-6
3	Electronic adjuster on turbocharger
4	Oil lines for the oil pan (intake side)
5	O-rings for oil line on cylinder head - replace
6	Oil line to the cylinder head (pressure side) 4-6
7	Oil line on cylinder head 1-3
8	Screws securing oil line to cylinder head > Tightening torque 10 Nm (7.5 ftlb.)
9	Coolant lines for turbocharger
10	Screw securing coolant lines to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
11	Screws for holder for turbocharger lines > Tightening torque 10 Nm (7.5 ftlb.)
12	Vent line, bank 1-3
13	Holder for oil line on turbocharger, bank 1-3
14	Screws for holder for oil line for turbocharger, bank 1-3 > Tightening torque 10 Nm (7.5 ftlb.)
15	Vent line, bank 4-6
16	Hexagon nut, M8 - replace > Tightening torque 25 Nm (19 ftlb.)
17	Screws securing oil line (intake side) to oil pan > Tightening torque 10 Nm (7.5 ftlb.)
18	O-rings for oil line - replace
Not Shown	Screws securing oil line (pressure side) to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
Not Shown	Oil lines (intake side) to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
