Overview Of Components In Wheel Housing

WARNING: This page is about a different variant/trim than selected.

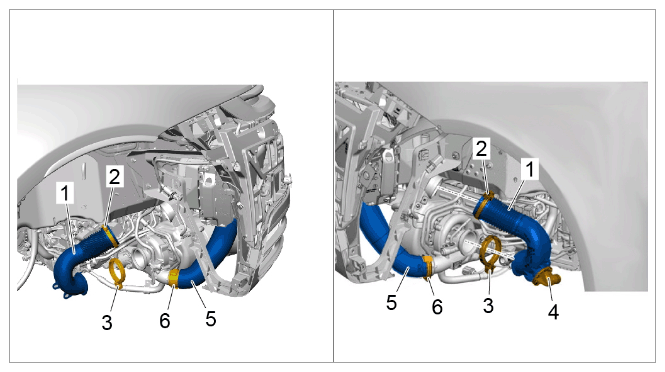

Fig 1: Charge Air Guide Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge air guide

1	Intake pipe
2	Screw-type clamp securing intake pipe to air cleaner housing > Tightening torque 2.5 Nm (1.75 ftlb.) + 0.5 Nm (0.3 ftlb.)
3	Clamp securing intake pipe to turbocharger - replace > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
4	Positive crankcase ventilation connection (right side only)
5	Moulded hose (pressure side)
6	Screw-type clamp securing moulded hose to turbocharger > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

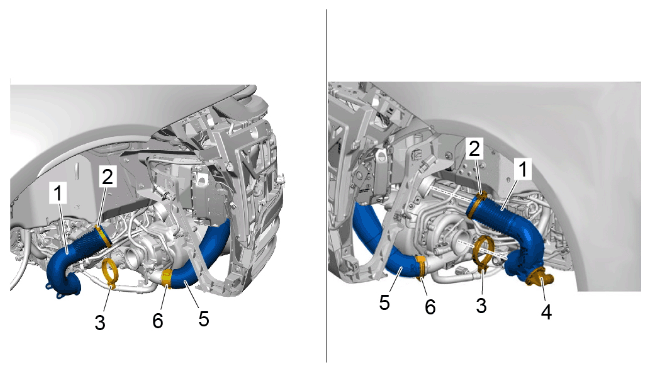

Fig 1: Charge Air Guide Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge air guide

1	Intake pipe
2	Screw-type clamp securing intake pipe to air cleaner housing > Tightening torque 2.5 Nm (1.75 ftlb.) + 0.5 Nm (0.3 ftlb.)
3	Clamp securing intake pipe to turbocharger - replace > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
4	Positive crankcase ventilation connection (right side only)
5	Moulded hose (pressure side)
6	Screw-type clamp securing moulded hose to turbocharger > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
