Valve block vacuum supply:

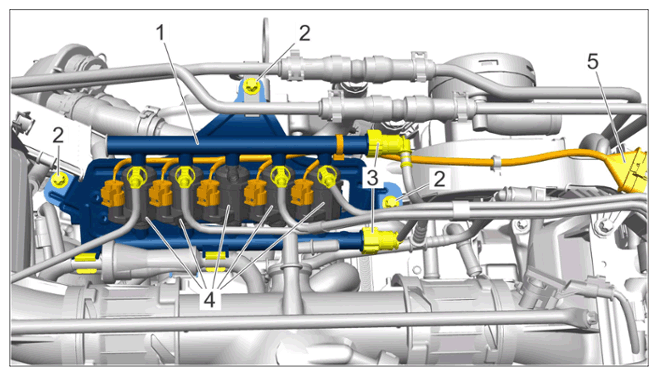

Fig 1: Vacuum Lines, Valve Block Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum lines, valve block

1	Valve block
2	Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
3	Connection for plug-in couplings for vacuum line
4	Control valves
5	Cable plugs for electrical system
