Upper Holder On Intake-Air Distributor, Bank 4-6

WARNING: This page is about a different variant/trim than selected.

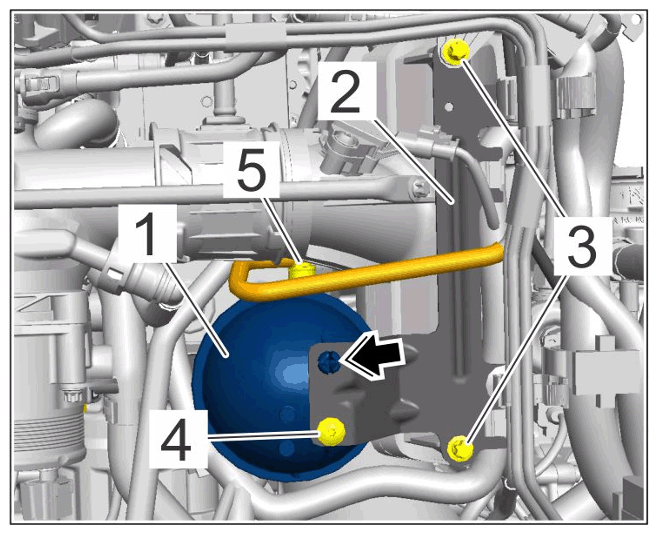

Fig 1: Vacuum Reservoir Holder On Intake-Air Distributor For Cylinder Bank 4-6 Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum reservoir holder on intake-air distributor for cylinder bank 4-6

1	Vacuum reservoir
2	Holder
3	Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
4	Tapping screw > Tightening torque 3 Nm (2.2 ftlb.)
5	Vacuum line connection

Rubber shroud to throttle body > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Cover on engine control unit DME > Tightening torque 9 Nm (6.5 ftlb.)

Holder for engine control unit DME to body > Tightening torque 9 Nm (6.5 ftlb.)

Engine control unit DME in holder > Tightening torque 8 Nm (6 ftlb.) + 2 Nm (1.5 ftlb.)

Fig 1: Vacuum Reservoir Holder On Intake-Air Distributor For Cylinder Bank 4-6 Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum reservoir holder on intake-air distributor for cylinder bank 4-6

1	Vacuum reservoir
2	Holder
3	Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
4	Tapping screw > Tightening torque 3 Nm (2.2 ftlb.)
5	Vacuum line connection

Rubber shroud to throttle body > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Cover on engine control unit DME > Tightening torque 9 Nm (6.5 ftlb.)

Holder for engine control unit DME to body > Tightening torque 9 Nm (6.5 ftlb.)

Engine control unit DME in holder > Tightening torque 8 Nm (6 ftlb.) + 2 Nm (1.5 ftlb.)
