Upper Holder On Intake-Air Distributor, Bank 1-3

WARNING: This page is about a different variant/trim than selected.

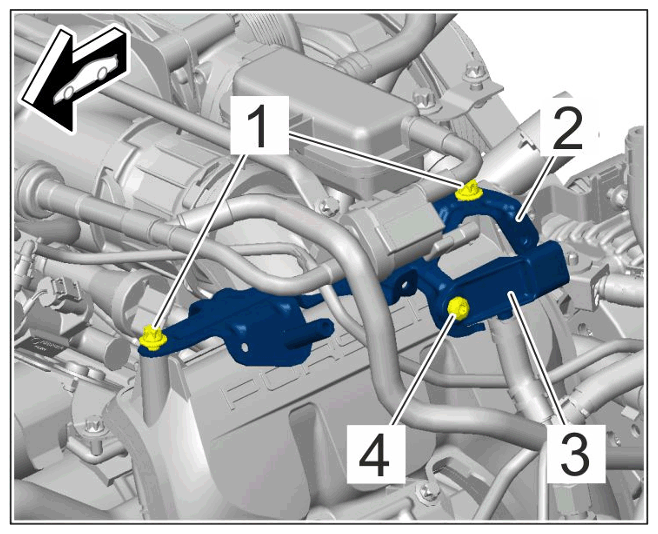

Fig 1: Tank Vent Valve With Holder And Sensor Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent valve with holder and sensor

1	Screw securing tank vent valve holder to intake-air distributor > Tightening torque 10 Nm (7.5 ftlb.)
2	Tank vent valve holder
3	Tank ventilation sensor or dummy
4	Screw securing tank ventilation sensor to holder > Tightening torque 10 Nm (7.5 ftlb.)
not shown	Oil filler neck to holder for intake-air distributor > Tightening torque 8 Nm (6 ftlb.)

Fig 1: Tank Vent Valve With Holder And Sensor Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent valve with holder and sensor

1	Screw securing tank vent valve holder to intake-air distributor > Tightening torque 10 Nm (7.5 ftlb.)
2	Tank vent valve holder
3	Tank ventilation sensor or dummy
4	Screw securing tank ventilation sensor to holder > Tightening torque 10 Nm (7.5 ftlb.)
Not Shown	Oil filler neck to holder for intake-air distributor > Tightening torque 8 Nm (6 ftlb.)
