Side Holder On Intake-Air Distributor, Bank 1-3

WARNING: This page is about a different variant/trim than selected.

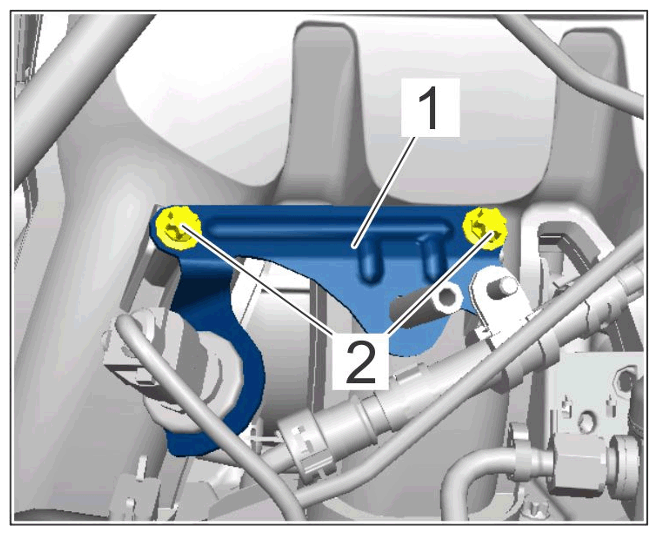

Fig 1: Holder For Engine Temperature Sensor And Fuel Line On Intake-Air Distributor 1-3 Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for engine temperature sensor and fuel line on intake-air distributor 1-3

1	Holder for engine temperature sensor and fuel line
2	Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)

Fig 1: Holder For Engine Temperature Sensor And Fuel Line On Intake-Air Distributor 1-3 Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for engine temperature sensor and fuel line on intake-air distributor 1-3

1	Holder for engine temperature sensor and fuel line
2	Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
