Intake-Air Distributor
WARNING: This page is about a different variant/trim than selected.

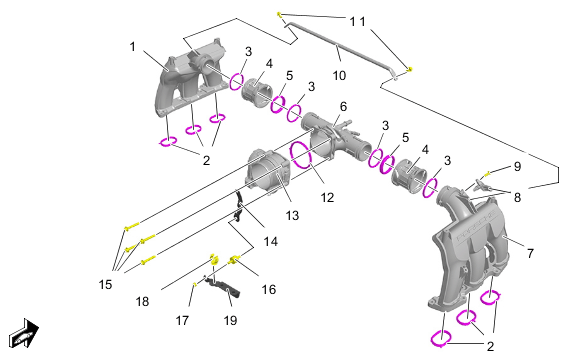

Component overview of intake-air distributor
| 1 | Intake-air distributor, bank 1-3 > Tightening torque 13 Nm (9.5 ftlb.) |
| 2 | Sealing ring for intake duct - grease lightly |
| 3 | Sealing ring for bayonet ring, outer and on centre part - grease lightly |
| 4 | Bayonet ring |
| 5 | Sealing ring for bayonet ring, inner - grease lightly |
| 6 | Centre intake-air distributor |
| 7 | Intake-air distributor, bank 4-6 > Tightening torque 13 Nm (9.5 ftlb.) |
| 8 | Pressure sensor |
| 9 | Screw for intake pipe pressure sensor > Tightening torque 5 Nm (3.5 ftlb.) |
| 10 | Strut for intake-air distributor |
| 11 | M6 screw to holder between intake-air distributors > Tightening torque 13 Nm (9.5 ftlb.) |
| 12 | Sealing ring for throttle housing - grease lightly |
| 13 | Throttle housing |
| 14 | Throttle housing holder |
| 15 | M6 screws for throttle housing > Tightening torque 10 Nm (7.5 ftlb.) |
| 16 | Silent block |
