Rear Muffler Bracket With Heat Shield

WARNING: This page is about a different variant/trim than selected.

Assembly overview of rear muffler bracket with heat shield on belt drive:

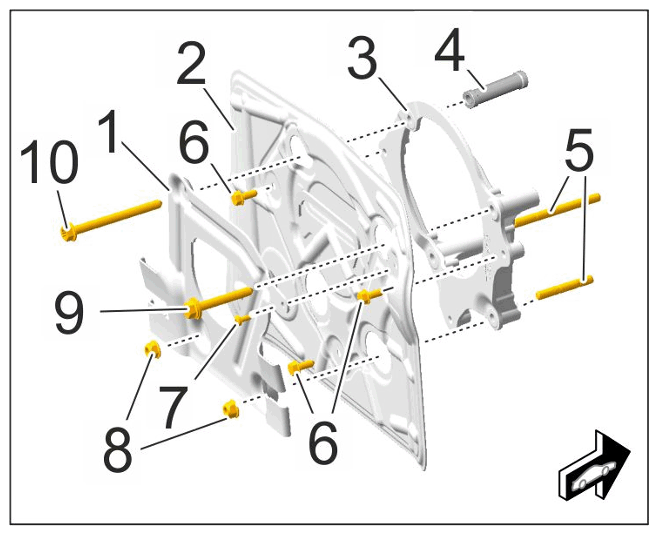

Fig 1: Rear Muffler Bracket With Heat Shield Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear muffler bracket with heat shield

1	Rear muffler bracket
2	Heat shield
3	Support
4	Spacer sleeve
5	Threaded bolt M10 - Projection at bottom left: 88 + 1 mm; Projection at bottom right: 48 + 1 mm > Tightening torque 5 Nm (3.7 ftlb.)
6	Screw for heat shield > Tightening torque 23 Nm (17 ftlb.)
7	Screw M6 x 14 > Tightening torque 10 Nm (7.4 ftlb.)
8	Collar nut M10 > Tightening torque 65 Nm (47.9 ftlb.)
9	Screw M10 x 75 > Tightening torque 65 Nm (47.9 ftlb.)
10	Screw M10 x 115 > Tightening torque 65 Nm (47.9 ftlb.) Different value with socket-wrench insert 9953: > Tightening torque 53 Nm (39.1 ftlb.)
