Installing Accelerator Pedal
WARNING: This page is about a different variant/trim than selected.

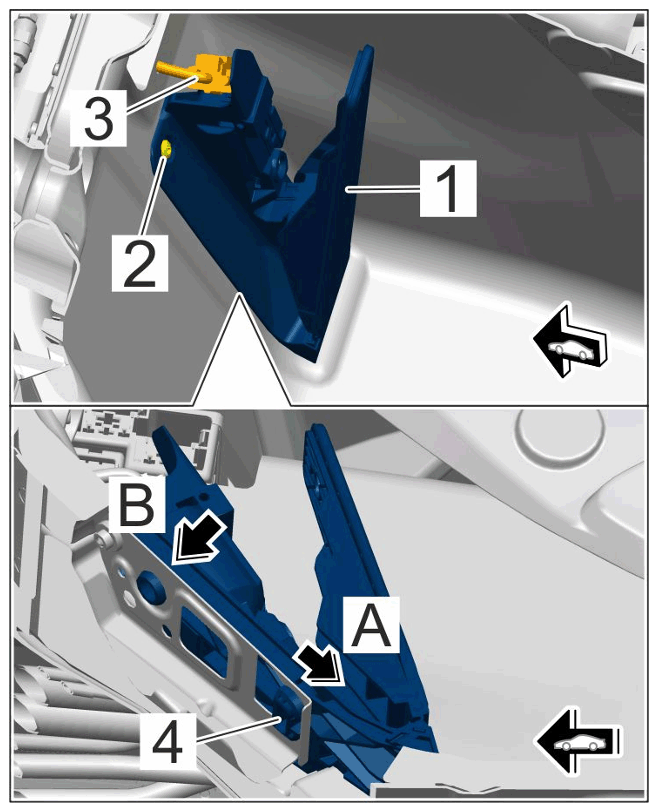

- Install accelerator pedal -1-
.
Guide accelerator pedal with hook -4-
into the bracket -arrow A-
and press into the shaped hole -arrow B-
.
Connect and lock electric plug connection -3-
.
Tighten screw -2-
. > Tightening torque 6 Nm (4.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Accelerator pedal
