Installing Control Unit For Fuel Pump

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following.

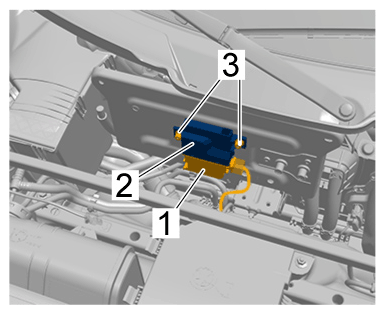

Tighten fastening nuts -3- on fuel pump control unit -2- to > Tightening torque 2.5 Nm (1.75 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump control unit

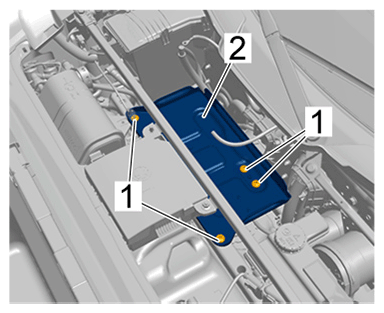

Tighten fastening screws -1- on battery console -2- to > Tightening torque 23 Nm (17 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery console
