Removing Fuel Pump

WARNING: This page is about a different variant/trim than selected.
WARNING: Flammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapours.

    → Attach warning sign in a clearly visible position.

Information

The fuel tank is transparent in the graphics for greater clarity.

Overview of components in fuel tank - all-wheel drive:

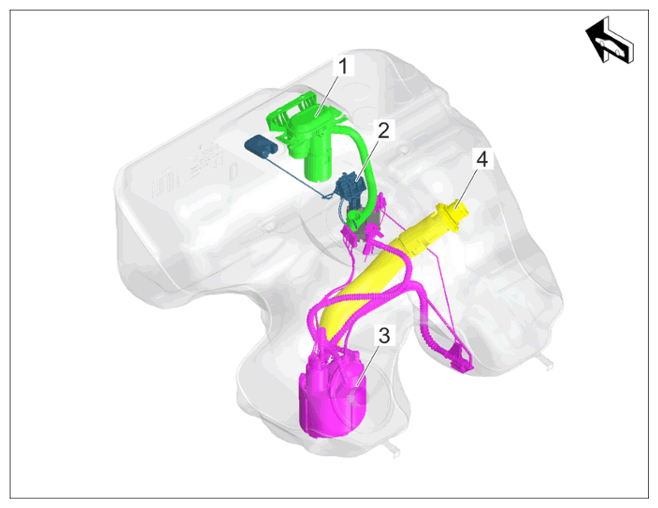

Fig 1: Fuel Tank Components Location (Ail-Wheel Drive)
G15507358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank components (ail-wheel drive)

1  Bleeding unit - cannot be removed
2  Fuel level sender
3  Fuel pump with fine fuel filter
4  Filler neck
  1. Remove fuel pump -5-  .

    For easier access, swivel vent line -1-  to the side, then turn and pull off the inner filler neck -4-  .

    Loosen bracket for the sucking jet pump -3-  .

    1. 1.2.1  Actuate release -2-  and unclip bracket -3-  .

      Turn the fuel pump -5-  anti-clockwise -Arrow-  and detach from the bayonet lock -6-  .

      The detail shows the fuel pump from below.

      Carefully guide the complete unit out of the fuel tank.

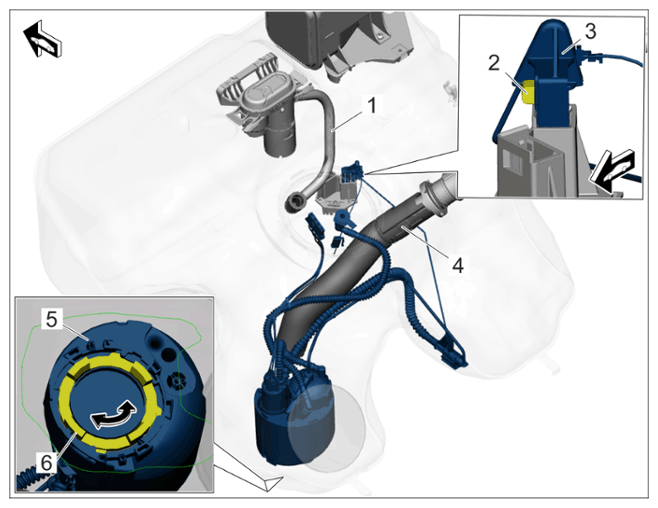

      G15507359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fuel pump in fuel tank
