Installing Fuel Pump
WARNING: This page is about a different variant/trim than selected.
WARNING:
Flammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
- Install fuel pump -5-
.
Carefully insert the complete unit into the fuel tank.
Position the fuel pump -5- and turn it clockwise -Arrow- to engage it in the bayonet lock -6- .
The cut-out view shows the fuel pump from below.
Secure the bracket for the sucking jet pump -3- .
Fit the filler neck -4- at the correct position and swivel the vent line -1- into installation position.

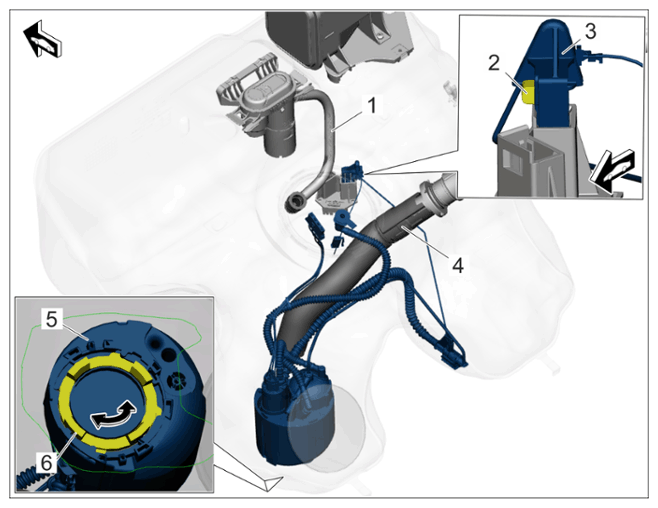

Fuel pump in fuel tank
