Installing Leakage Diagnosis Module
WARNING: This page is about a different variant/trim than selected.

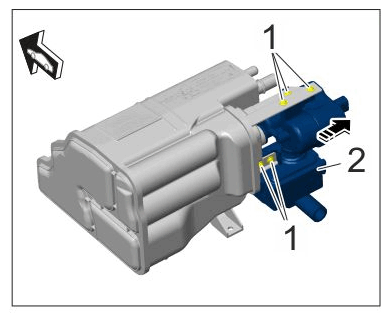

- Position leakage diagnosis module -2-
on the carbon canister and secure with screws -1-
.
> Tightening torque 2.4 Nm (1.75 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Leakage diagnosis unit
