Removing Fuel Supply Line (Rear Section)

WARNING: This page is about a different variant/trim than selected.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapours.

    → Attach warning sign in a clearly visible position.

    → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

    → Secure collection containers/vessels to prevent them from tipping over.

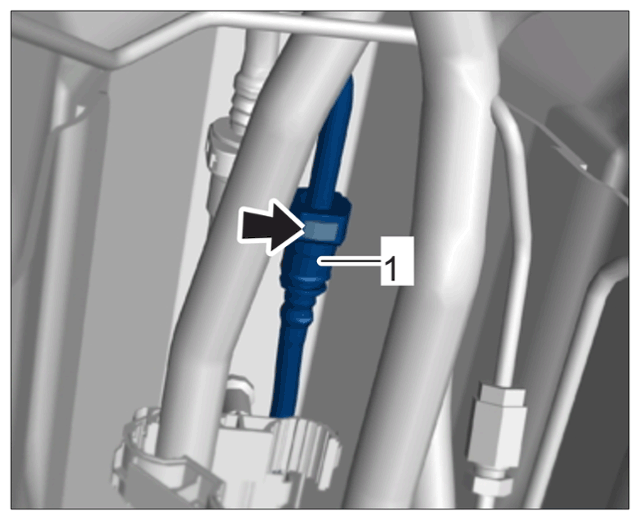

  1. Open plug connection -1-  on the fuel line in the tunnel.

    Press locking mechanism -arrow-  and disconnect the line.

    G15507333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug connection for fuel supply line in the tunnel

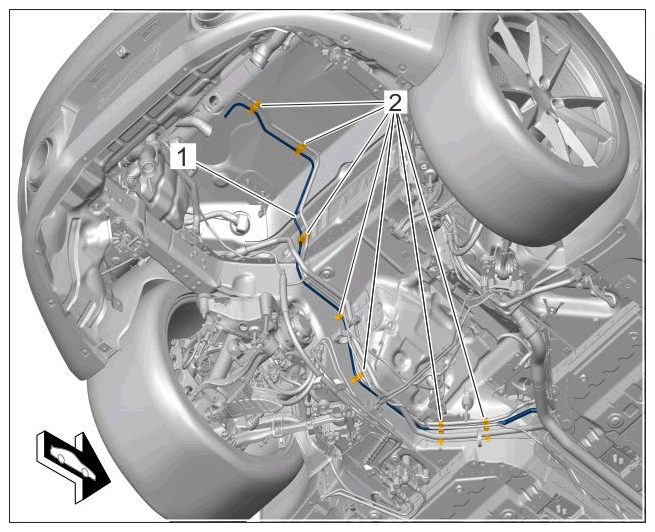

  2. Unclip fuel line -1-  from the retaining clips -2-  .
  3. Guide out and remove fuel line -1-  .
    G15507334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel supply line (rear section)
