Removing Fuel Supply Line (Front Section)

WARNING: This page is about a different variant/trim than selected.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapours.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

Information

Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.

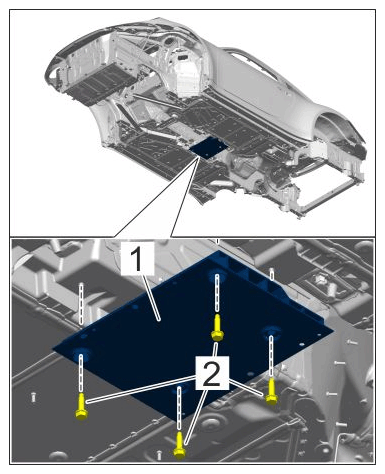

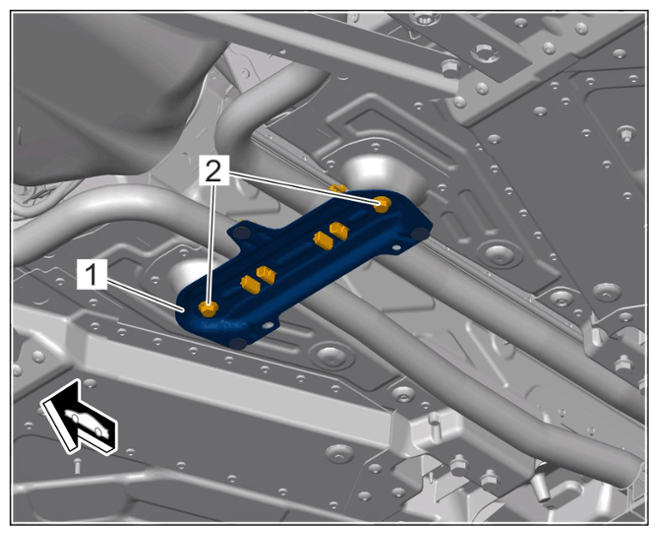

Remove rear tunnel reinforcement -1- .
Unscrew and remove screws -2- .

Remove rear tunnel reinforcement -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear tunnel reinforcement
Remove front coolant pipe holder -1- .
Unscrew screws -2- .

Unclip coolant pipes.

Remove front coolant pipe holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front coolant pipe holder

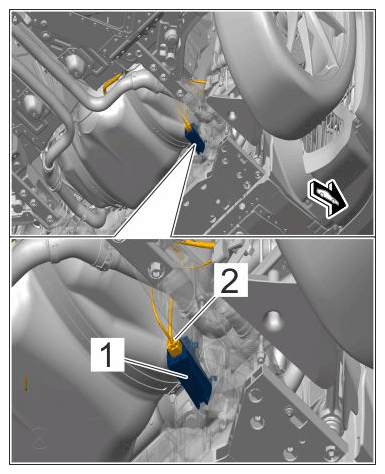

Disconnect control unit for Tyre Pressure Monitoring (TPM) -1- .
Disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for Tyre Pressure Monitoring (TPM)

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

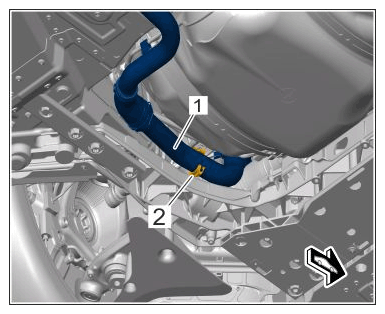

Disconnect coolant pipe -1- .
Unclip coolant pipe -1- on the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipe

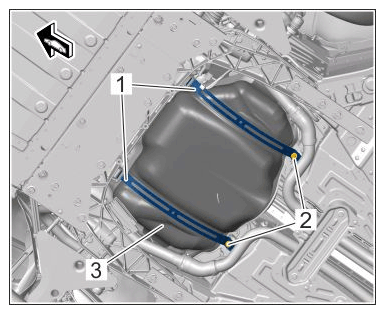

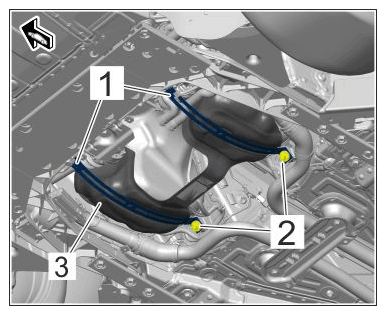

Loosen restraining straps for fuel tank -1- .
Unscrew screws -2- .

Remove cover of fuel tank -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank with restraining straps
Loosen fuel tank (all-wheel) restraining straps -1- .
Unscrew screws -2- .

Remove cover of fuel tank (all-wheel) -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank (all-wheel) with restraining straps

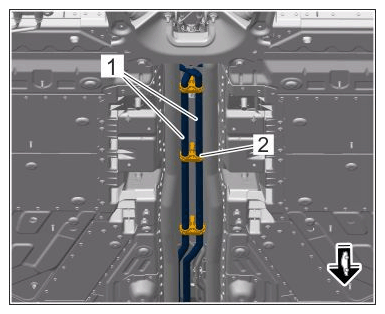

Disconnect coolant lines (heater) -1- at the retaining clips -2- in the tunnel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines for heating
Release locking mechanism -arrow- at the retaining clip -1- using a suitable tool -2- and unclip fuel line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing holder on coolant line for heater

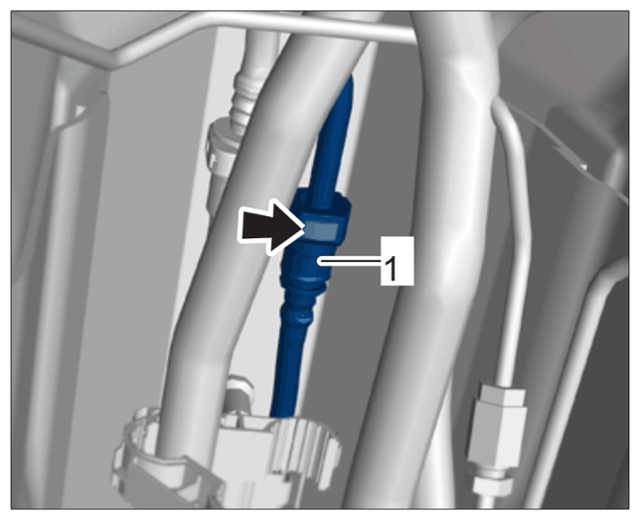

Open plug connection -1- on the fuel line in the tunnel.
Press locking mechanism -arrow- and disconnect the line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for fuel supply line in the tunnel

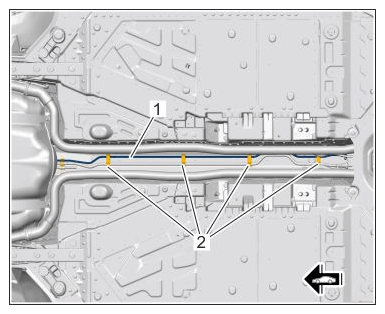

Loosen the fuel line -1- at the retaining clips -2- in the tunnel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel supply line in tunnel

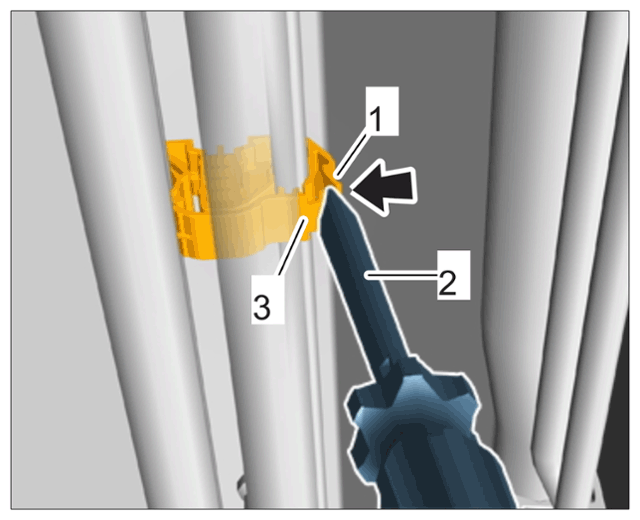

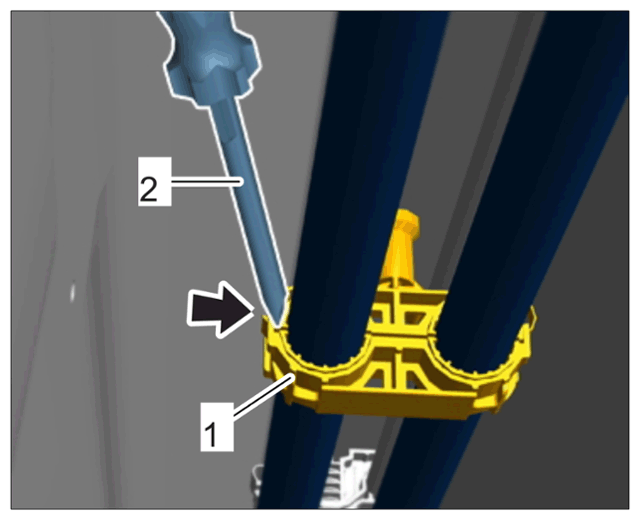

Release locking mechanism -1- at the retaining clip -3- using a suitable tool -2- and unclip fuel line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clip on fuel line

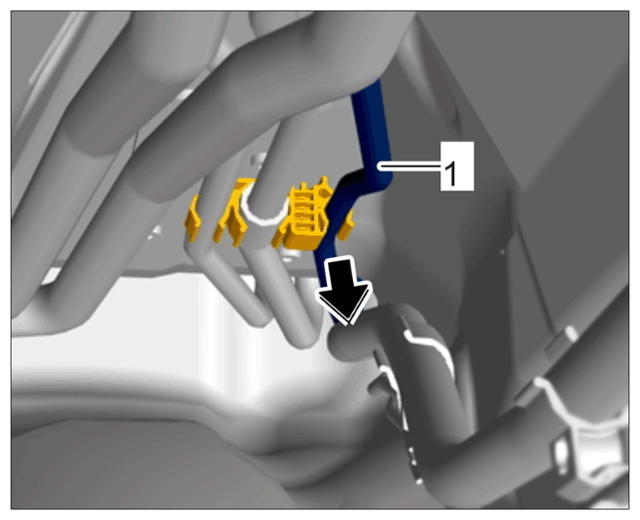

Unclip fuel line -1- at the front -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping fuel line at the front
Leave the fuel line hanging down.
Information
- Get another person to help you to guide the fuel line in and out.
Lower the vehicle as required so that the mechanic lying on a creeper board under the vehicle can guide the fuel line in and out.
Have a step ladder or pedestal ready beside the vehicle so that your helper can guide the fuel line along.

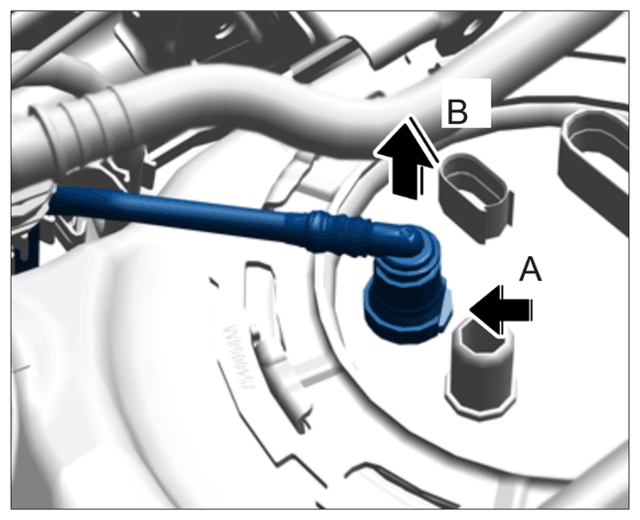

Release locking mechanism -arrow A- and pull off the fuel line -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel line at fuel tank flange

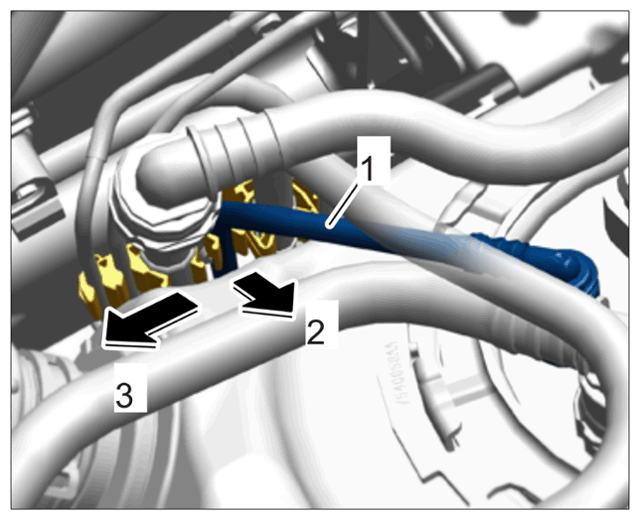

Unclip fuel line -1- (-arrow 2- ) and move it as far as the foam -arrow 3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping and moving fuel line

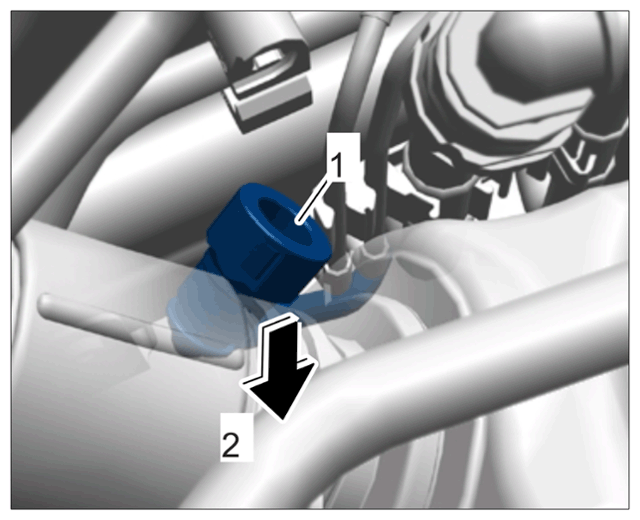

Slide the fuel line and plug-in coupling -1- through between the foam and bulkhead by pushing it downwards -arrow 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sliding fuel line downwards
Guide out and remove the fuel line from below.
