Installation Position

WARNING: This page is about a different variant/trim than selected.

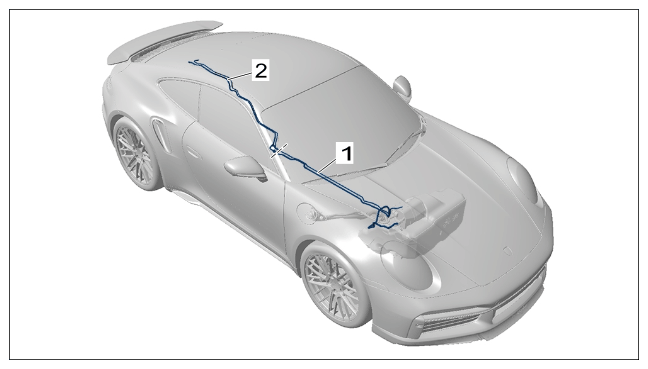

Fig 1: Fuel Supply Line Components Location
G15507316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Fuel supply line - front section
2  Fuel supply line - rear section
