Removing Carbon Canister With Leakage Diagnosis Module

WARNING: This page is about a different variant/trim than selected.

Disconnect carbon canister -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

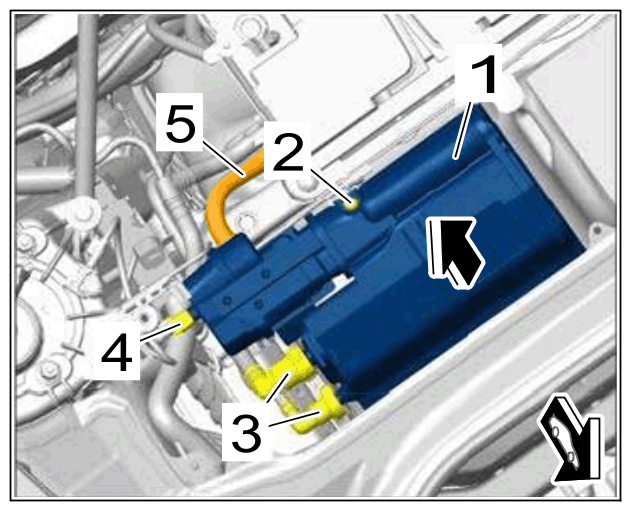

Carbon canister with leakage diagnosis module

Unscrew screw -2- .

Release and disconnect plug-in couplings -3- .

Release and disconnect electric plug connection -4- .

Pull off hose -5- .
Remove carbon canister -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

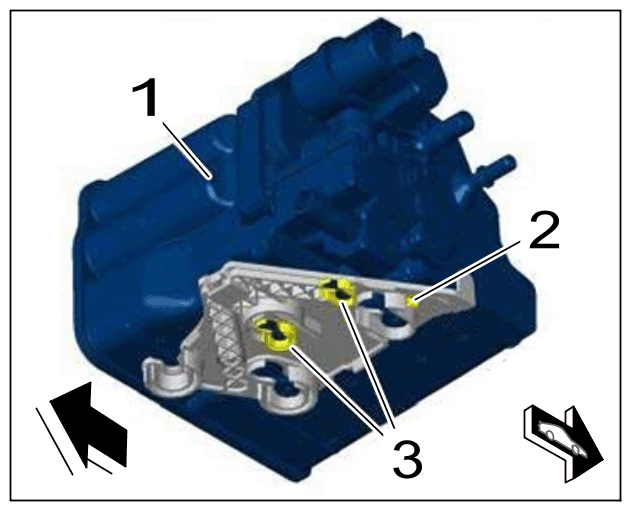

Carbon canister with leakage diagnosis module - view from below

Unclip carbon canister -1- from the latches -3- in -direction of arrow- . When doing so, make sure not to damage the guide pin -2- .
