Installing Carbon Canister

WARNING: This page is about a different variant/trim than selected.

Install carbon canister -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

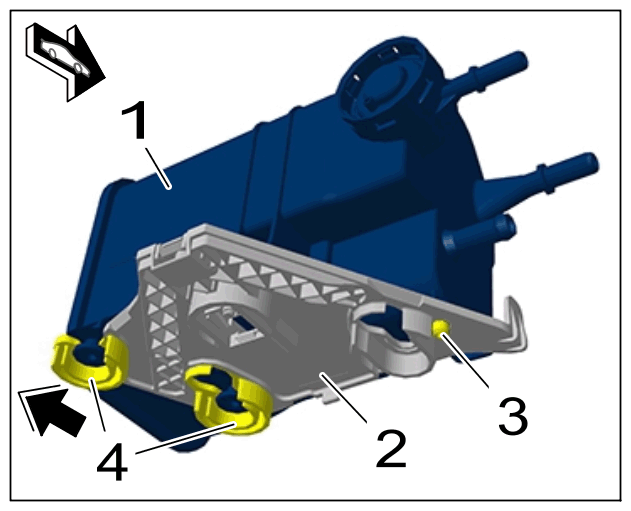

Carbon canister - view from below

Clip carbon canister -1- in the opposite direction to -direction of arrow- into latches -4- . When doing so, make sure not to damage the guide pin -3- .
Secure carbon canister -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

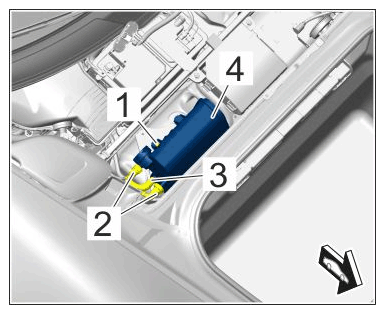

Carbon canister

Screw in and tighten screw -1- .

> Tightening torque 3 Nm (2 ftlb.)

Connect the hose -3- .

Connect and lock plug-in couplings -2- .
