Installing Carbon Canister With Leakage Diagnosis Module

WARNING: This page is about a different variant/trim than selected.

Install carbon canister -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

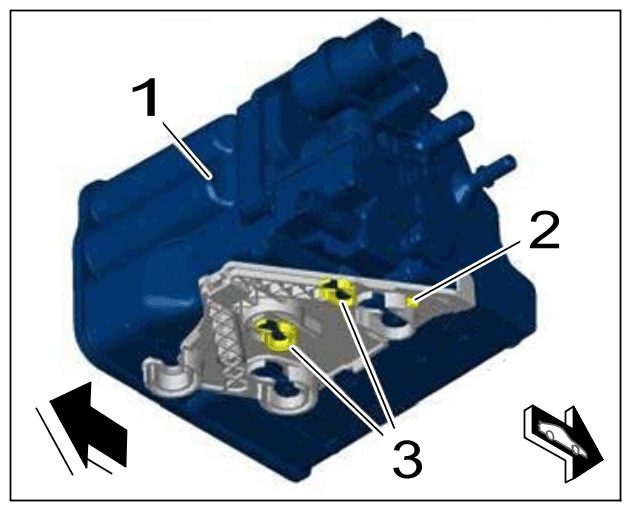

Carbon canister with leakage diagnosis module - view from below

Clip carbon canister -1- in the opposite direction to -direction of arrow- into latches -3- . When doing so, make sure not to damage the guide pin -2- .
Secure carbon canister -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

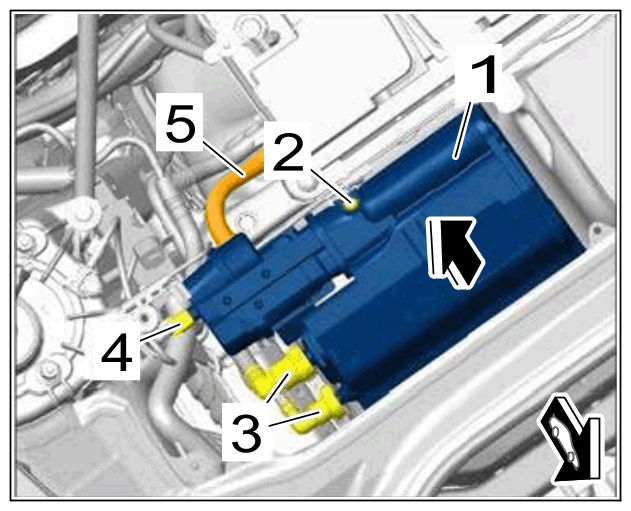

Carbon canister with leakage diagnosis module

Screw in and tighten screw -2- .

> Tightening torque 3 Nm (2 ftlb.)

Connect and lock plug-in couplings -3- .

Connect and lock electric plug connection -4- .

Connect the hose -5- .
