Removing Filler Neck
WARNING: This page is about a different variant/trim than selected.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.
Information
Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.

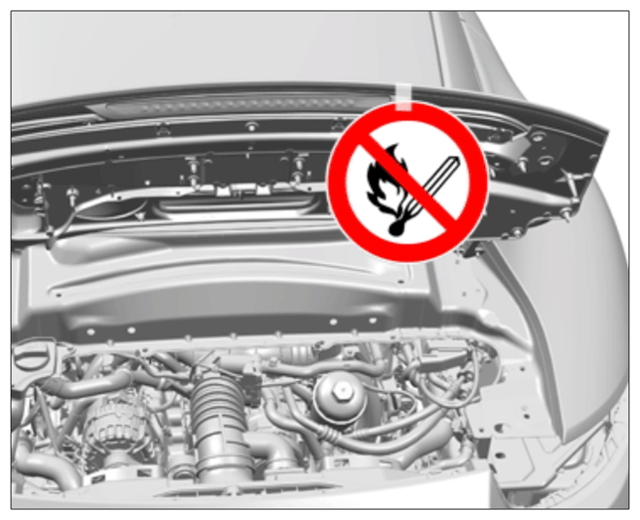

- Place a warning sign in a clearly visible position in the work area or on the vehicle.
Example of a warning sign

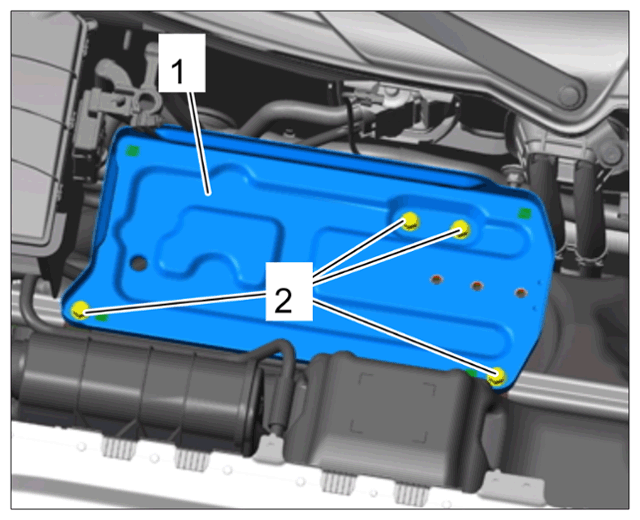

- Unscrew and remove fastening screws -2-
on the battery bracket -1-
.
Information
Make sure not to damage the electric line.
- Carefully lift the battery bracket -1- and turn it around until the electric plug connection is accessible.
- Disconnect electric plug connection on the fuel pump control unit.
Battery bracket

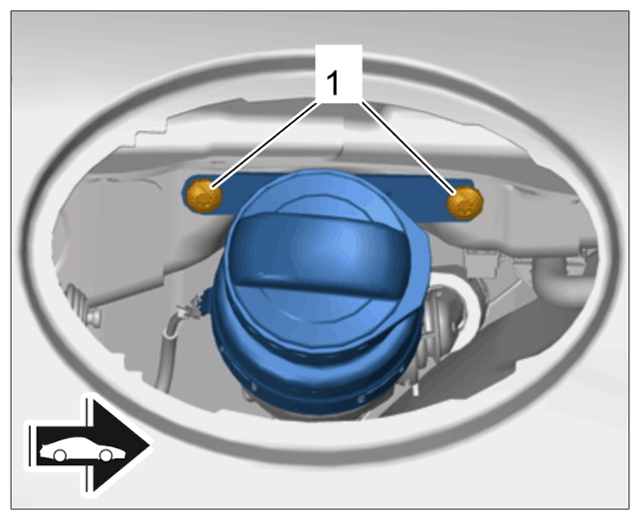

- Unscrew and remove fastening screws -1-
for the filler neck.
Filler neck mounting

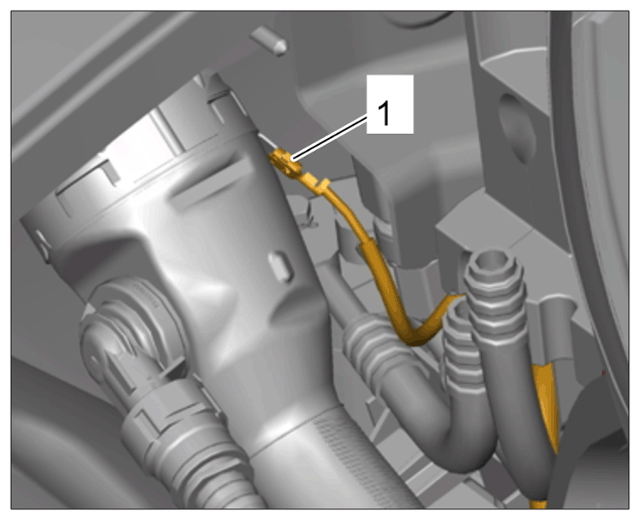

- Disconnect ground line -1-
.
Ground line at filler neck

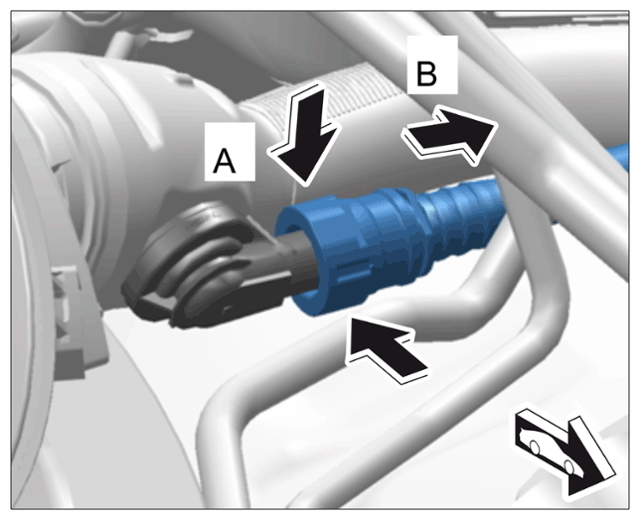

- Release tank vent line at the filler neck -arrows A-
and pull it off -arrow B-
.
Tank vent line

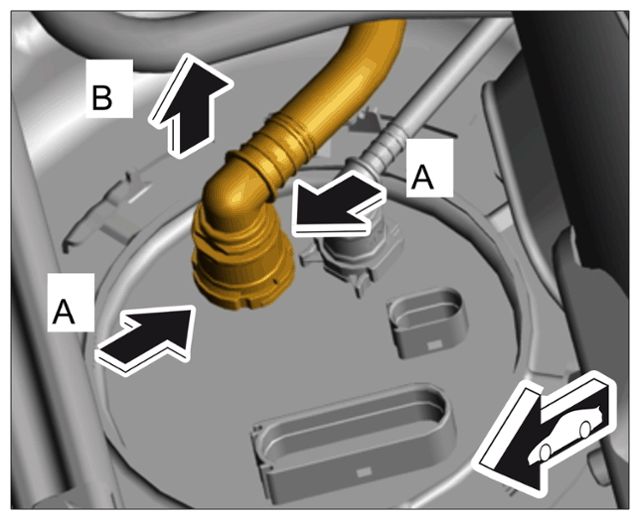

- Release line at the fuel tank -arrows A-
and pull it off -arrow B-
.
Fuel line

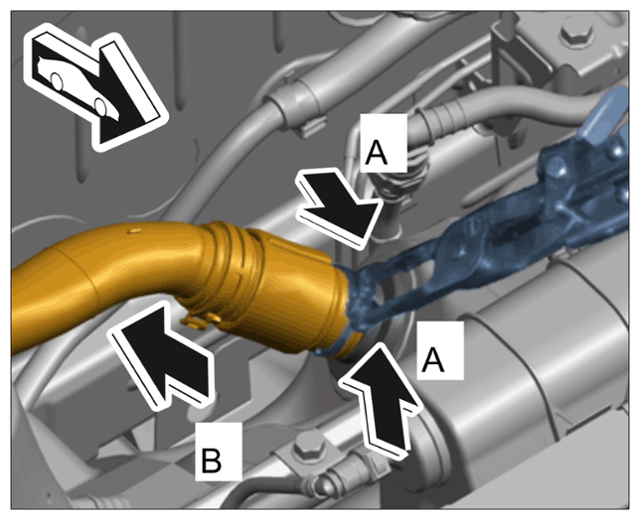

- Open clamp for filler neck -arrows A- .
- Pull filler neck off the connection at the fuel tank -arrow B- .
- Guide out filler neck using a twisting motion.
Filler neck
