Preliminary Work
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
- Observe safety instructions when working on the fuel system.
2X00IN BASIC SAFETY INSTRUCTIONS FOR WORKING WITH THE FUEL SYSTEM
- Place protective covers on the vehicle.
- Remove the battery.
- Place a warning sign in a clearly visible position in the work area or on the vehicle.

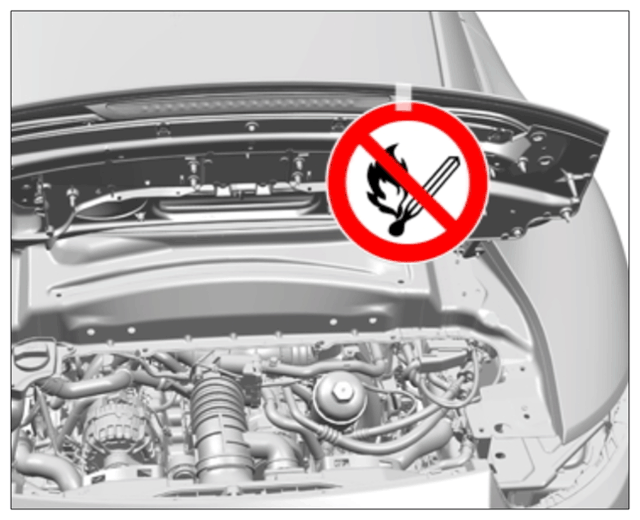

Example of a warning sign

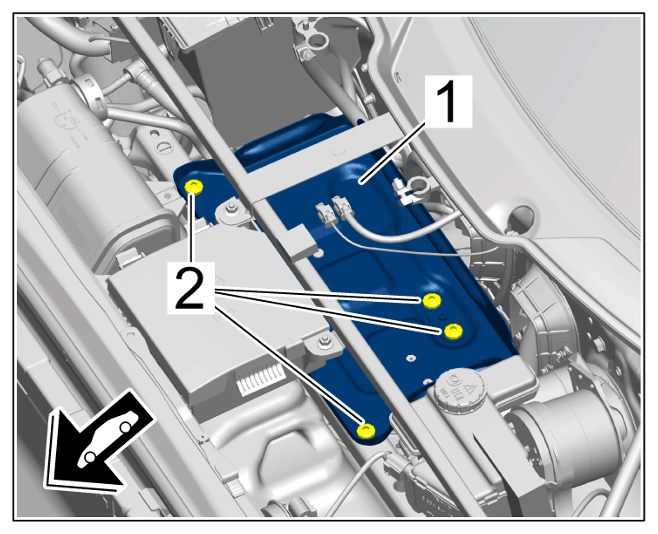

- Loosen screws -2-
and bend up the battery console -1-
.
The connector for the fuel pump control unit remains connected.
Battery console
