Approved Test Media

WARNING: This page is about a different variant/trim than selected.

Test medium	Designation	Composition/purity
Helium He (gaseous, compressed)	4.6 (minimum quality) 5.0, etc. Not balloon gas	99.996 volume % (4.6) He 99.999 volume % (5.0) He
Forming gas	Forming gas 5	95% nitrogen N₂ and 5% hydrogen H₂
Leak-locating spray	e.g. TEGA test spray TPS 674	Request safety data sheet Address: Technische Gase u. Gastechnik GmbH, Werner-von-Siemens-Strase 18, 97076 Wurzburg

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapours.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

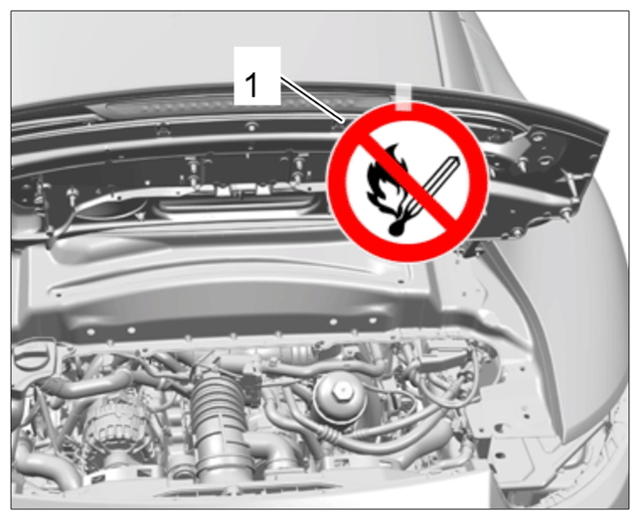

Attach warning sign -1- in a dearly visible position on the vehicle or position it in the immediate working area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Example of warning sign when working on the fuel system

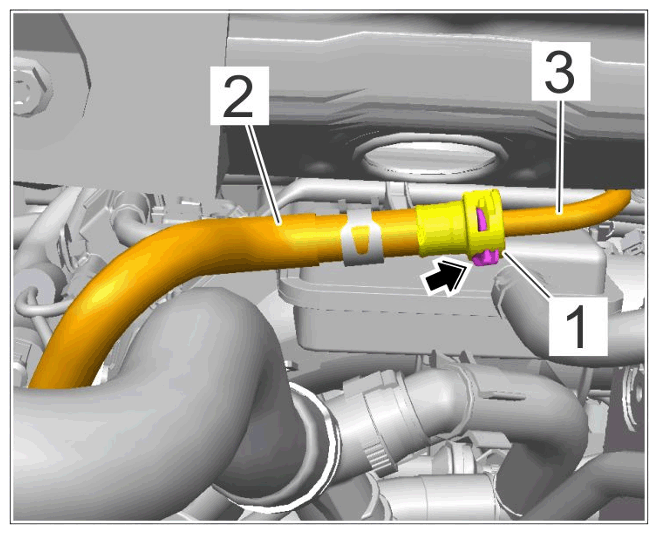

Open plug-in coupling -1- for fuel low-pressure lines -2 and 3- in the engine compartment if it is not yet open.
Carefully pull red lock -arrow- down using a small slotted screwdriver and pull line connection apart.

CAUTION: Risk of damage!

Catch escaping fuel with a cloth and remove cloth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel low-pressure line plug-in coupling connection
WARNING:
Leaking fuel supply lines
- Emerging fuel
- Risk of fire
  → Perform leak test.

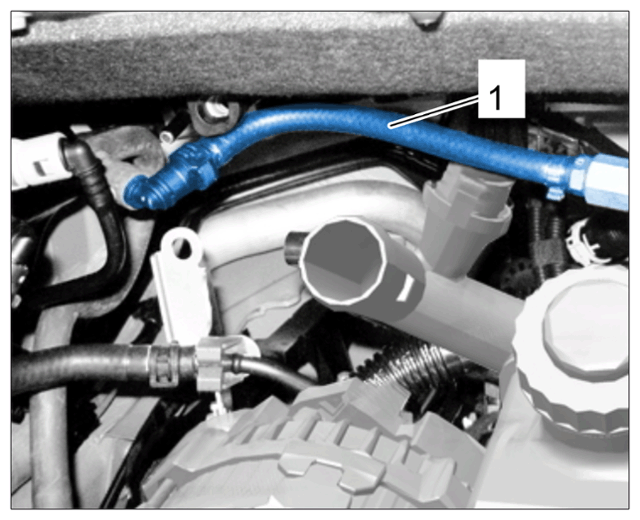

Connect adapter hose -1- to the plug-in coupling on the low-pressure line.
Connect compressed air connection of filling unit to the adapter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting test adapter to fuel line (similar to illustration)

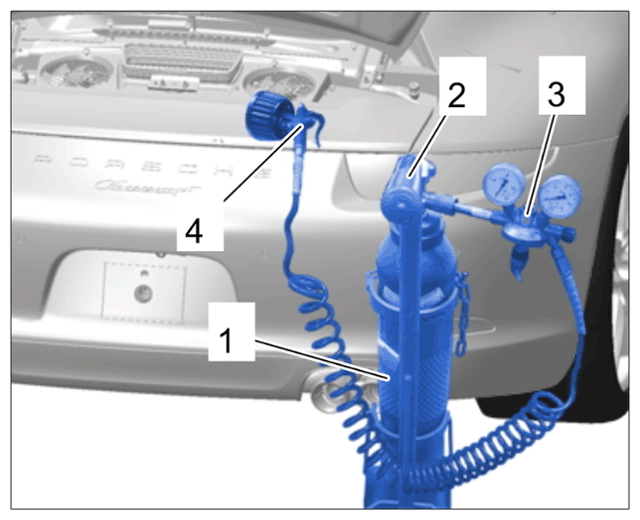

Fit pressure reducer -3- onto gas bottle -1- and connect to connecting line of filling unit -4- .
Check threaded connections on pressure reducer are seated securely.

Check that compressed air adapter is seated securely.

Screw gas bottle onto screw plug -2- anti-clockwise by 2-3 turns.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tester on the vehicle
CAUTION:
Test pressure is exceeded
- Risk of damage to high-pressure pump
  → The test gas test pressure must not exceed a maximum pressure of 10 bar.

  → The setting is made at the pressure reducer.

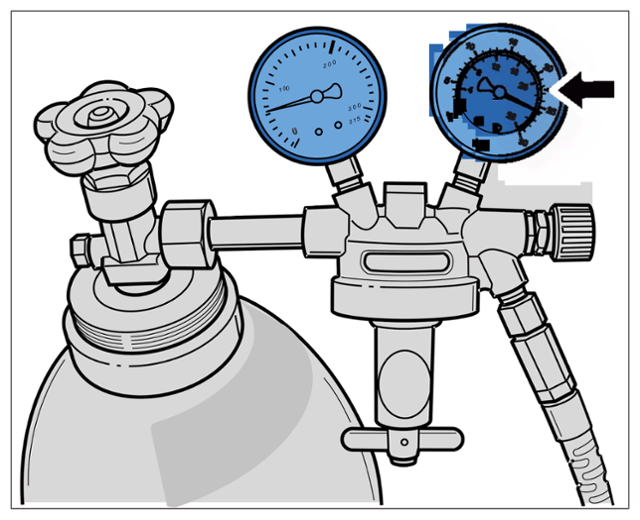

Set the test pressure on the pressure reducer to between 7 and 9 bar (corresponds to a flow volume of approx. 26 - 28 litres of test gas -arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting pressure reducer tester settings

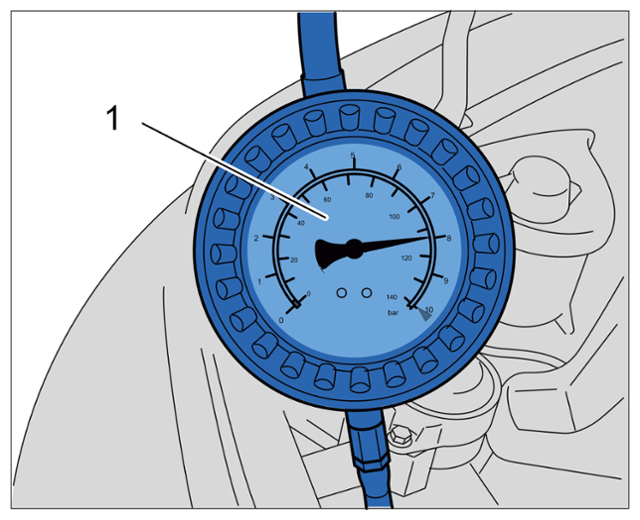

Using the test gauge -1- apply the ideal pressure to the closed fuel system.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Test gauge

> Pressure 8 bar +/- 1 bar
Coat connections with commercially available leak-locating spray (see recommendation).
Leaks are identifiable from bubbling and can also be heard as a hissing sound.

There must be no pressure drop at the test gauge.
Leaks could be caused by a damaged sealing cone, loose connections or incorrectly fitted union nuts (damaged thread), for example.
Determine causes and correct immediately.
Remove test tools.
The test gases evaporate after a short time.
