Connecting And Disconnecting Battery

Information

Switch off all loads and remove the ignition key.

• Do not disconnect the battery while the engine is running.
• Disconnect and re-connect battery with extreme caution.

Information

The battery is located at the front in the radiator tank.

1. Remove cover.

   Refer to WM, 852219 REMOVING AND INSTALLING (TECHNICAL EQUIPMENT SPACE) COVER .

2. Unscrew ground strap on the battery:
   1. 2.1  Risk of short circuit! Disconnect the negative cable -2-  on the battery.
   2. 2.2  Route or isolate the negative cable so that all contact with a ground carrier (e.g. body, battery terminal) is avoided.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

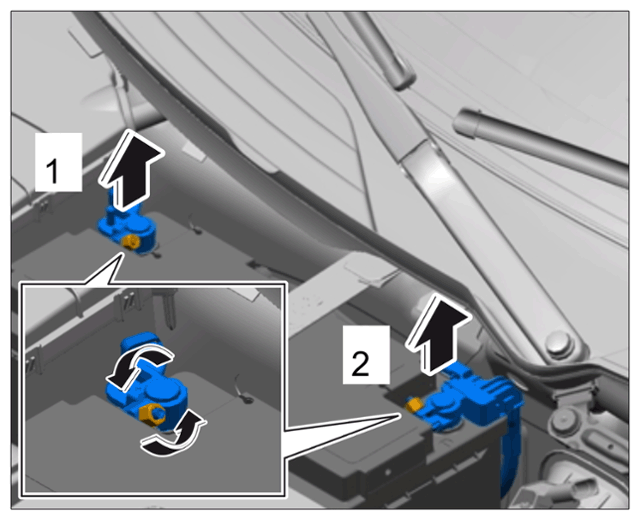

      Disconnecting terminal clamps

3. Connect the battery
   1. 3.1  Connect the negative cable -2-  to the battery terminal and secure it with the fastening nut. > Tightening torque 6 (4.5 ftlb.1 Nm +/- 0.5 (0.3 ftlb.1 Nm
