Charge Air Cooler

WARNING: This page is about a different variant/trim than selected.

Mounting point for charge-air cooler

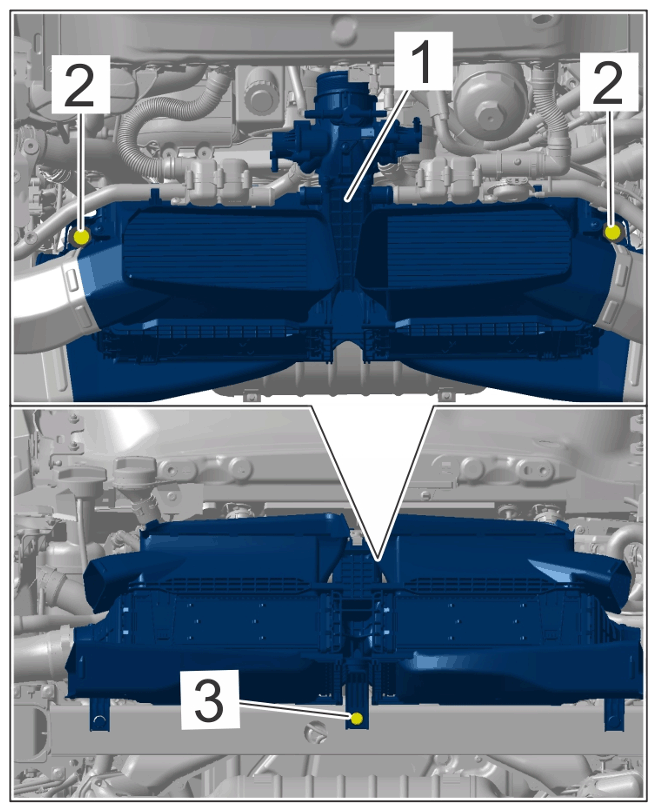

Fig 1: Charge-Air Cooler Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooler

1	Charge-air cooler module
2	Screw, M6 x 35 -2- > Tightening torque 10 Nm (7.5 ftlb.)
3	Support sleeve

Screws on air guide

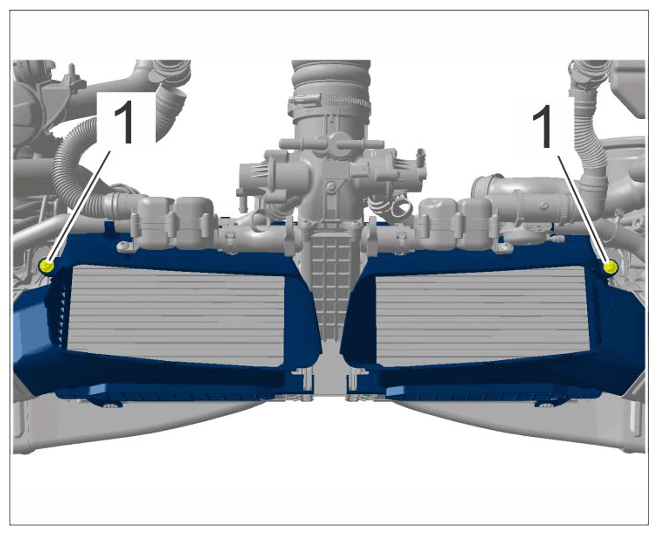

Fig 2: Screws On Air Guide Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on air guide

1	Screw for air guide > Tightening torque 3 Nm (2 ftlb.)

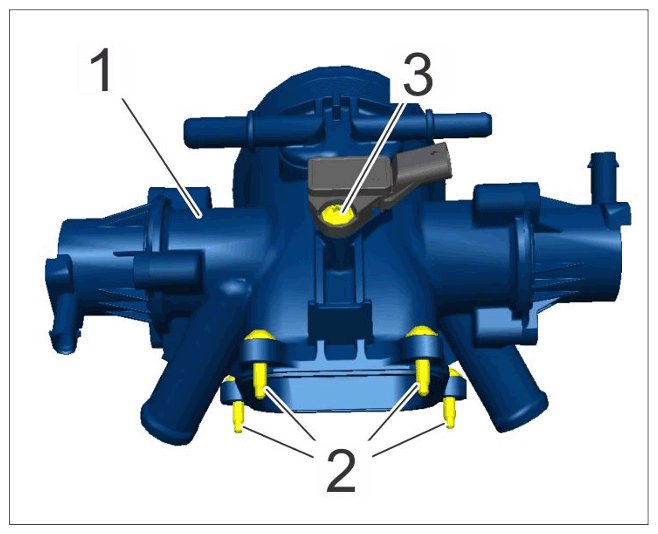

Pressure pipe with boost pressure sensor

Fig 3: Pressure Pipe With Boost Pressure Sensor Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe with boost pressure sensor

1	Pressure pipe
2	Screws securing pressure pipe to charge-air cooler > Tightening torque 6 Nm (4.5 ftlb.) - 0.3 Nm (0.2 ftlb.) + 0.5 Nm (0.35 ftlb.)
3	Screw for boost pressure sensor > Tightening torque 3 Nm (2 ftlb.)
not shown	Screw-type clamp on rubber shroud for throttle valve > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

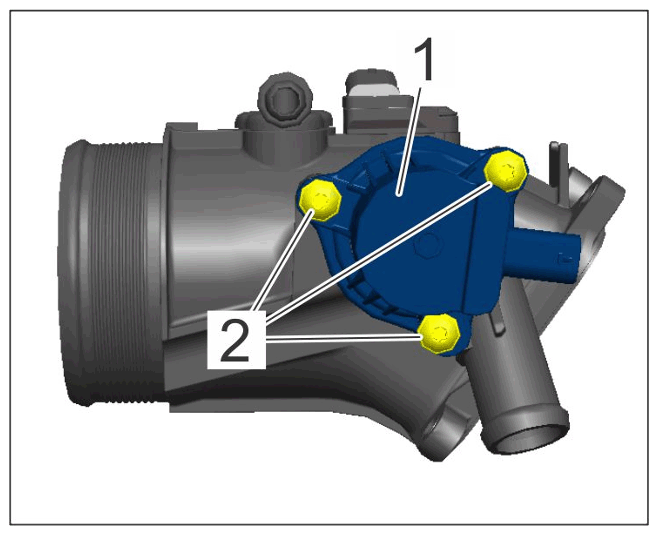

Wastegatealve:

Fig 4: Wastegatealves On Pressure Pipe Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wastegatealves on pressure pipe

1	Wastegatealve
2	Screws for wastegatealve > Tightening torque 3 Nm (2 ftlb.) + 0.2 Nm (0.1 ftlb.)

Mounting point for charge-air cooler

Fig 1: Charge-Air Cooler Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooler

1	Charge-air cooler module
2	Screw, M6 x 35 -2- > Tightening torque 10 Nm (7.5 ftlb.)
3	Support sleeve

Screws on air guide

Fig 2: Screws On Air Guide Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on air guide

1	Screw for air guide > Tightening torque 3 Nm (2 ftlb.)

Pressure pipe with boost pressure sensor

Fig 3: Pressure Pipe With Boost Pressure Sensor Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe with boost pressure sensor

1	Pressure pipe
2	Screws securing pressure pipe to charge-air cooler > Tightening torque 6 Nm (4.5 ftlb.) - 0.3 Nm (0.2 ftlb.) + 0.5 Nm (0.35 ftlb.)
3	Screw for boost pressure sensor > Tightening torque 3 Nm (2 ftlb.)
not shown	Screw-type clamp on rubber shroud for throttle valve > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Wastegate valve:

Fig 4: Wastegate Valves On Pressure Pipe Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wastegate valves on pressure pipe

1	Wastegate valve
2	Screws for wastegate valve > Tightening torque 3 Nm (2 ftlb.) + 0.2 Nm (0.1 ftlb.)
