Removing Boost Pressure Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Remove boost pressure sensor -1-  .

    Release and disconnect cable plug -3-  .

    Unscrew screw -2-  and remove boost pressure sensor -1-  .

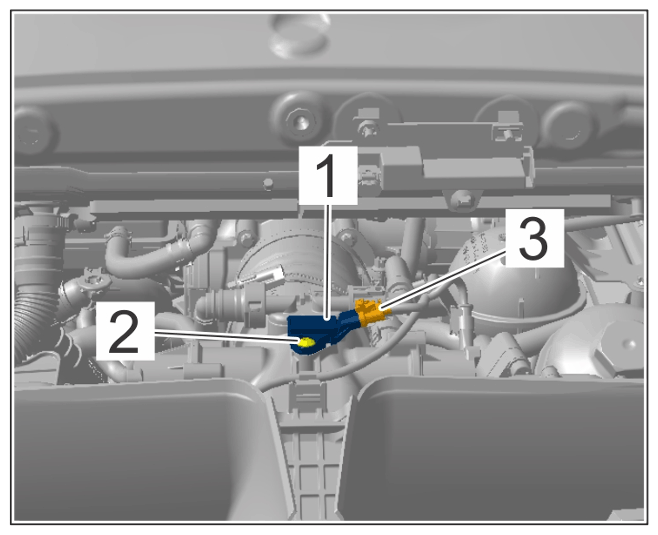

G15506061Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Boost-pressure sensor
