Component Information
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

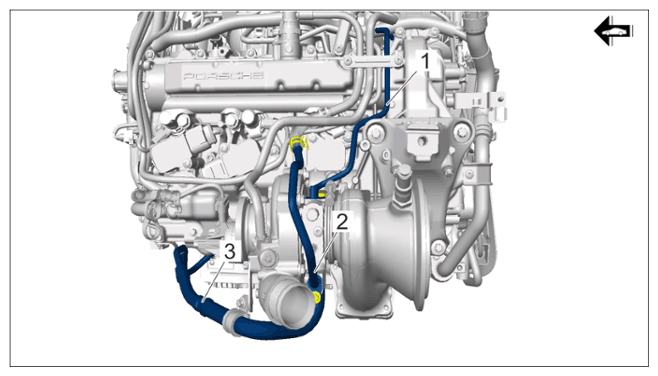

Component information for right turbocharger
| 1 |
Oil supply line |
| 2 |
Oil return line |
| 3 |
Hose line for bleeding |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

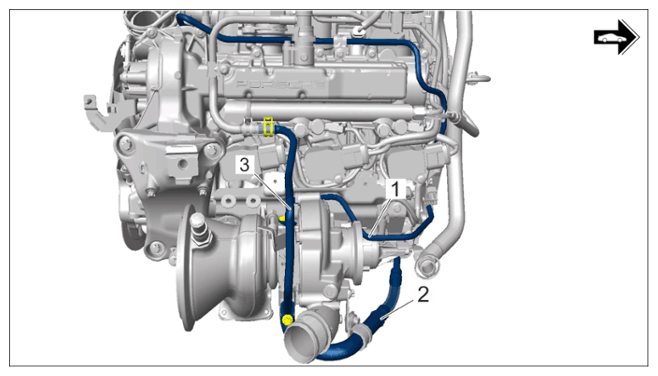

Component information - left turbocharger
| 1 |
Oil supply line |
| 2 |
Hose line for bleeding |
| 3 |
Oil return line |
