Removing Pressure Pipe

1. Expose pressure pipe.

   Release and disconnect cable plug -1-  and loosen clip -2-  .

   Release and pull off joiner -3-  .

   Loosen hose clamp -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

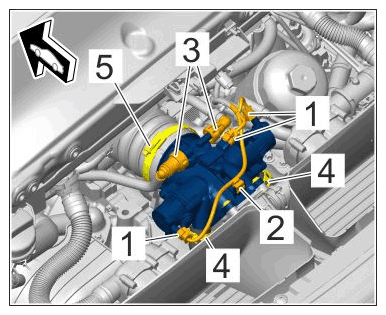

   Add-on parts for pressure pipe

2. Remove pressure pipe -2-  .

   Unscrew and remove screws -1-  .

   Disconnect pressure pipe -2-  from hose -3-  and guide it out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

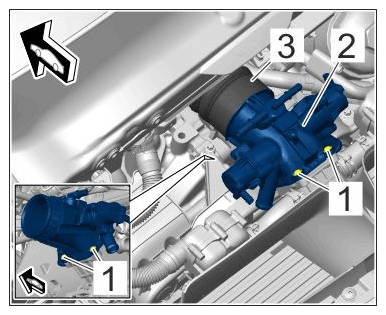

Mount for pressure pipe
