Installing Pressure Pipe (At The Side)
WARNING: This page is about a different variant/trim than selected.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

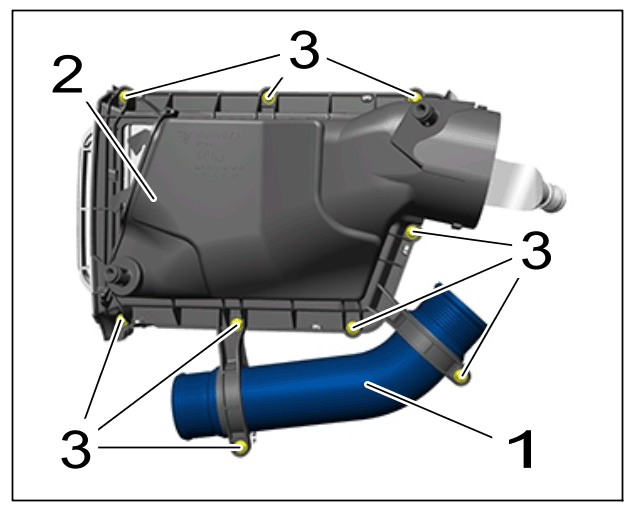

- Install pressure pipe (at the side) -1-
.
Position pressure pipe (at the side) -1- .
Position lower part of air cleaner -2- and fit and tighten screws -3- .
> Tightening torque 2.2 Nm (1.6 ftlb.)
Pressure pipe (at the side)
