Removing Recirculating Air Valve
WARNING: This page is about a different variant/trim than selected.

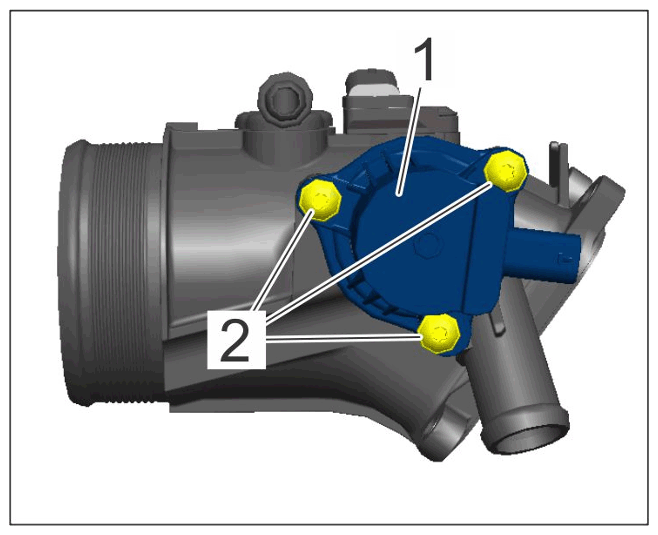

- Remove recirculating air valve -1-
.
Disconnect cable plug -1-
for recirculating air valve.
Loosen the screws of recirculating air valve -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Add-on parts for pressure pipe
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Wastegate valves on pressure pipe
