Remove Moulded Hose From Turbocharger

WARNING: This page is about a different variant/trim than selected.
  1. Remove moulded hose -1-  .

    Undo screw-type clamps -2-  and remove moulded hose -1-  .

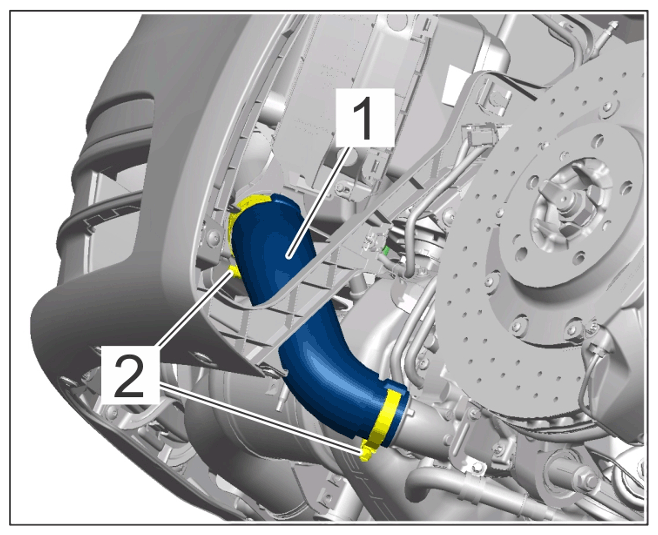

G15506012Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moulded hose on turbocharger
