Remove Moulded Hose From Charge-Air Cooler
WARNING: This page is about a different variant/trim than selected.
- Remove moulded hose -1-
.
Undo screw-type clamps -2-
and remove moulded hose -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

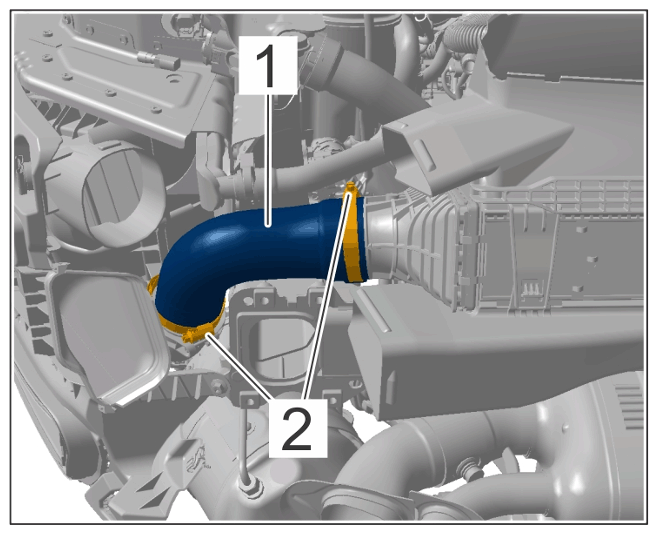

Moulded hose on charge-air cooler
