Preliminary Work On Moulded Hose On Charge-Air Cooler

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear apron.

    635519 REMOVING AND INSTALLING REAR APRON

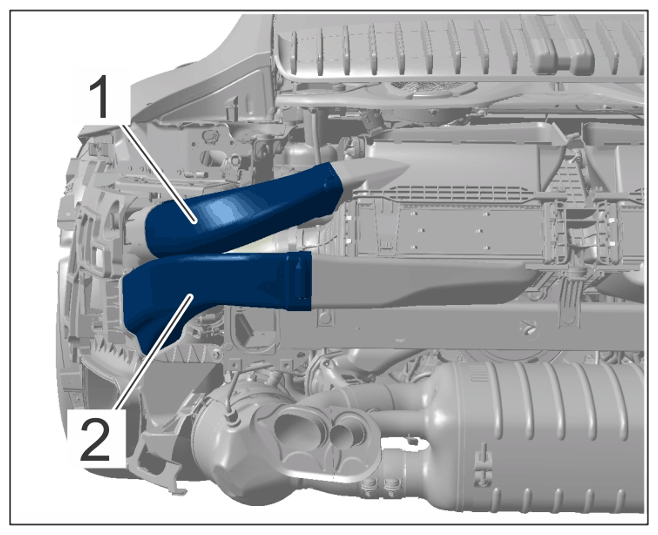

  2. Remove air guides -1-  and -2-  .
G15506010Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooler air guides
