Install Moulded Hose On Charge-Air Cooler
WARNING: This page is about a different variant/trim than selected.
- Installing -1-
moulded hose.
Coat inside of moulded hose with Kluberplus gel.
Tightening torque for screw-type clamps -2-
:
> Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

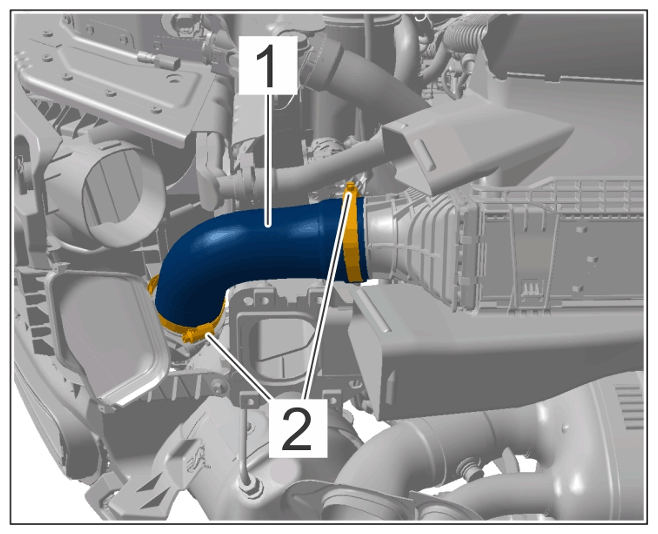

Moulded hose on charge-air cooler
