Removing Right Coolant Supply Line
WARNING: This page is about a different variant/trim than selected.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.
- Remove coolant line -1-
.
Unscrew screw -2- .
Unscrew screw -3- .
Loosen wiring harness for oxygen sensor from holder -4- .
Loosen coolant line -1- from holder -5- .
Loosen clamp -6- and pull off coolant line -1- .
Disconnect coolant line -1- on the turbocharger.
Collect emerging coolant.
Replace O-rings.

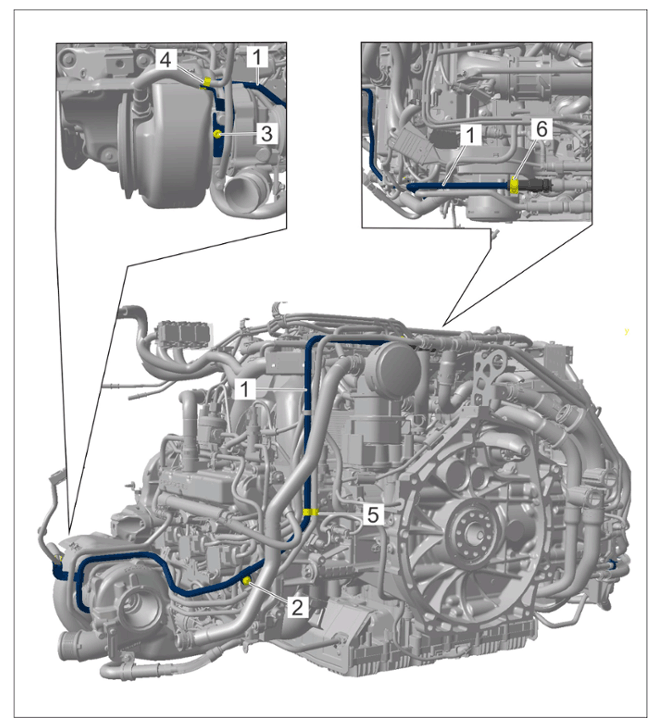

Coolant supply line, right
