Removing Air Guide

WARNING: This page is about a different variant/trim than selected.

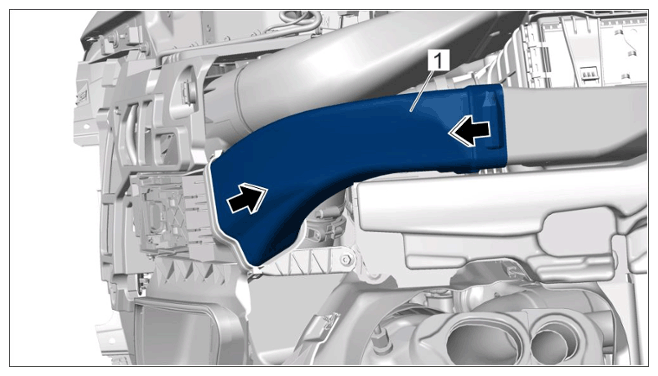

  1. Unclip air guide -1-  (-Arrows-  ) and remove it.
G15505974Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for charge-air cooling
