Technical Values - Turbocharging: Turbocharger

WARNING: This page is about a different variant/trim than selected.

Component overview

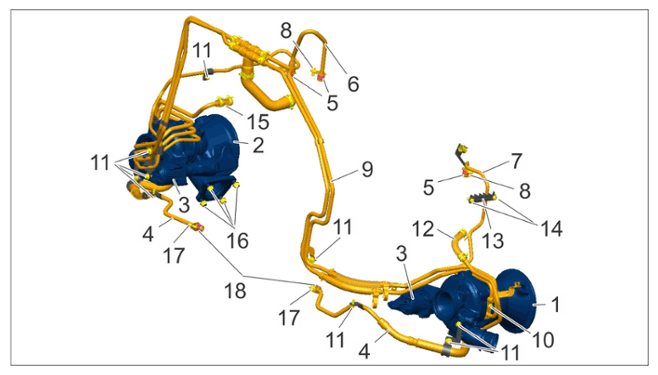

Fig 1: Turbocharger, Lines Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger, lines

1	Turbocharger, bank 1-3
2	Turbocharger, bank 4-6
3	Electronic adjuster on turbocharger
4	Oil lines for the oil pan (intake side)
5	O-rings for oil line on cylinder head - replace
6	Oil line to the cylinder head (pressure side) 4-6
7	Oil line on cylinder head 1-3
8	Screws securing oil line to cylinder head > Tightening torque 10 Nm (7.5 ftlb.)
9	Coolant lines for turbocharger
10	Screw securing coolant lines to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
11	Screws for holder for turbocharger lines > Tightening torque 10 Nm (7.5 ftlb.)
12	Vent line, bank 1-3
i3	Holder for oil line on turbocharger, bank 1-3
14	Screws for holder for oil line for turbocharger, bank 1-3 > Tightening torque 10 Nm (7.5 ftlb.)
15	Vent line, bank 4-6
16	Hexagon nut, M8 - replace > Tightening torque 25 Nm (19 ftlb.)
17	Screws securing oil line (intake side) to oil pan > Tightening torque 10 Nm (7.5 ftlb.)
18	O-rings for oil line - replace
not shown	Screws securing oil line (pressure side) to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
not shown	Oil lines (intake side) to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)

Vent line on turbocharger and holder on cylinder head

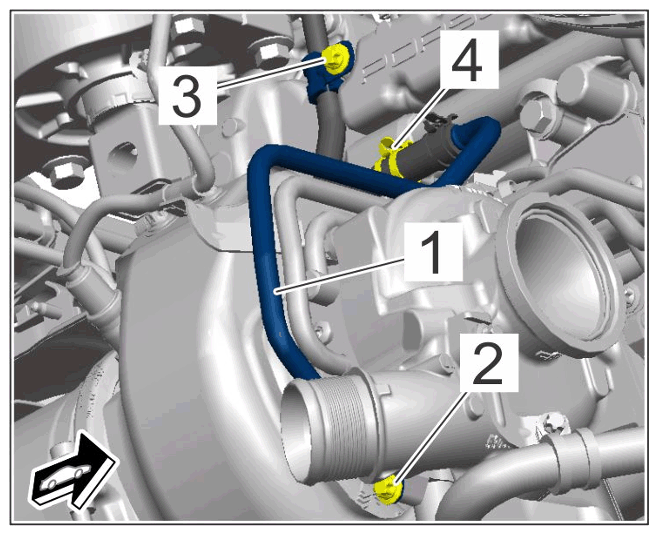

Fig 2: Vent Line On Turbocharger Components Location With Torque Specification - Bank 4-6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line on turbocharger, bank 4-6

1	Turbocharger vent line
2	Screw securing vent line to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
3	Screw securing vent line holder to cylinder head cover > Tightening torque 10 Nm (7.5 ftlb.)
4	Spring band clamp

Tank vent line on turbochagers

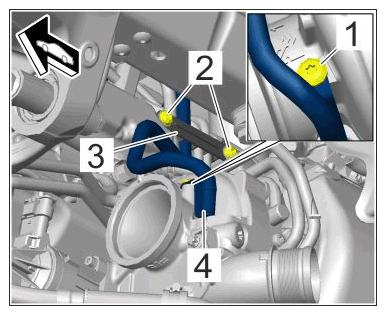

Fig 3: Tank Vent Line Components Location With Torque Specification - Bottom

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom

1	Screw, M6 - tank vent line > Tightening torque 10 Nm (7.5 ftlb.) -1-
2	Screws on turbocharger vent line holder
3	Holder
4	Tank vent line connection on turbocharger

Electronic adjuster on turbocharger

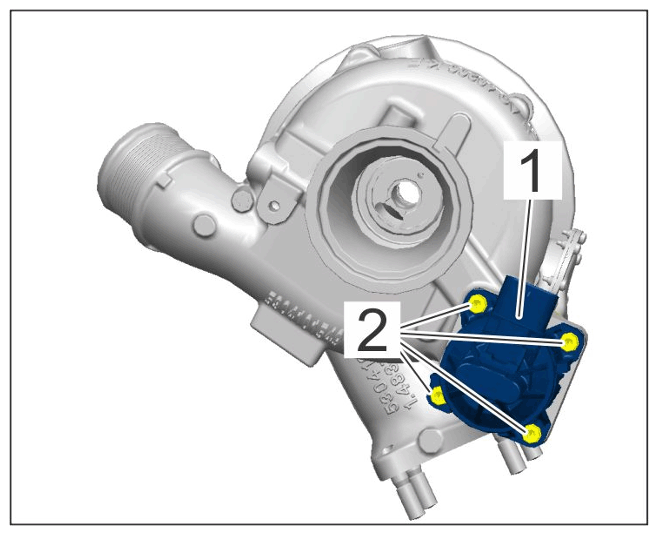

Fig 4: Electronic Adjuster On Turbocharger Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electornic adjuster on turbocharger

1	Electronic adjuster
2	Screw, M5 x 20 > Tightening torque 4.3 Nm (3.2 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Kinematics on electronic adjuster

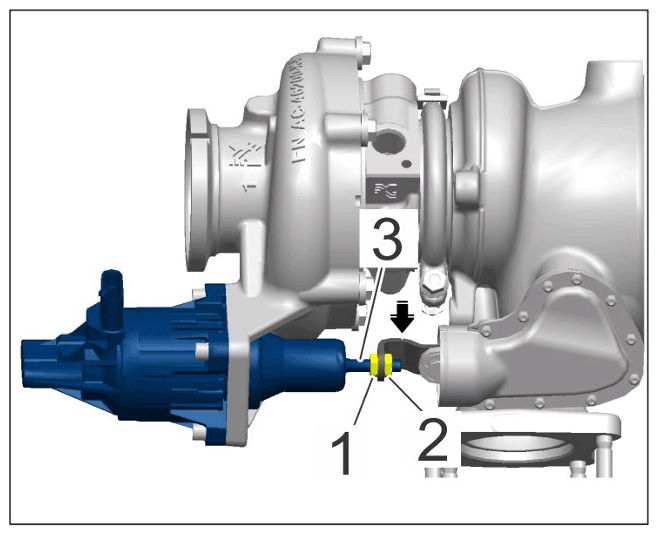

Fig 5: Pull Rod Of Kinematics On Electronic Adjuster Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull rod of kinematics on electronic adjuster

1	Adjusting nut > Tightening torque 6 Nm
2	Lock nut - counter when tightening the adjusting nut!
3	Pull rod
