Technical Values - Starter, Power Supply, Cruise Control: Battery
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Battery filler plug | Tightening torque | 1.2 Nm (0.9 ftlb.) | ||
|

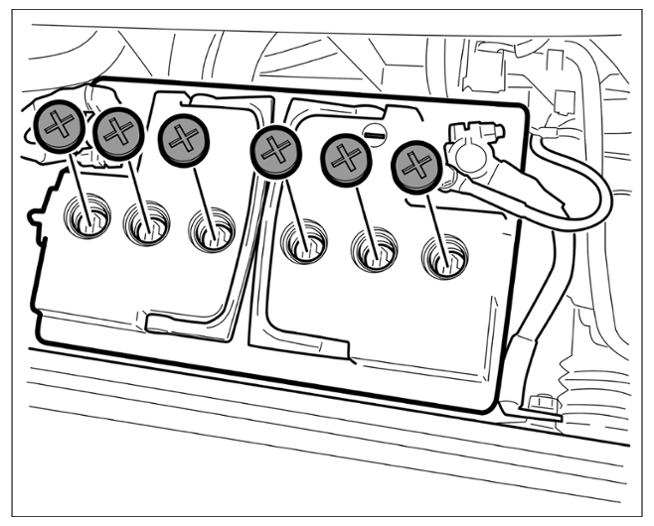

Unscrewing battery plugs |
||||
| Retaining bar on cowl panel frame or battery console | Collar nut, M8 | Tightening torque | 23 Nm (17 ftlb.) | |
| Terminal clamp to battery terminal | M6 nut | Tightening torque | 6 Nm (4.5 ftlb.) | |
| Battery ground line to cowl panel frame | Collar nut, M8 | Tightening torque | 15 Nm (11 ftlb.) | |
| Rail to battery console | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) | |
| Battery console to holder | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) | |
| Battery console holder to body | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Battery filler plug | Tightening torque | 1.2 Nm (0.9 ftlb.) | ||
|
Unscrewing battery plugs |
||||
| Retaining bar on cowl panel frame or battery console | Collar nut, M8 | Tightening torque | 23 Nm (17 ftlb.) | |
| Terminal clamp to battery terminal | M6 nut | Tightening torque | 6 Nm (4.5 ftlb.) | |
| Battery ground line to cowl panel frame | Collar nut, M8 | Tightening torque | 15 Nm (11 ftlb.) | |
| Rail to battery console | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) | |
| Battery console to holder | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) | |
| Battery console holder to body | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) |
