Carbon Canister

WARNING: This page is about a different variant/trim than selected.

Carbon canister (RoW):

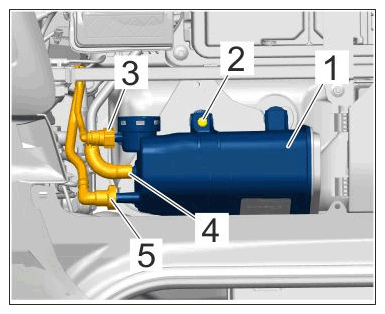

Fig 1: Carbon Canister Components Location With Torque Specification - Row

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister - RoW

1	Carbon canister - RoW
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Vent line connection
4	Air line connection
5	Fuel line connection

Carbon canister with leakage diagnosis module (OKVK):

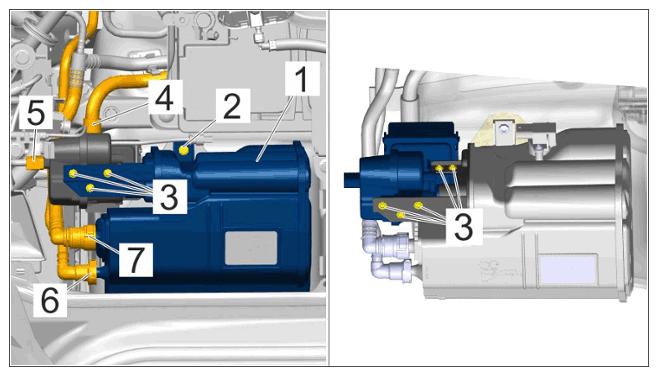

Fig 2: Carbon Canister With Leakage Diagnosis Module Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister with leakage diagnosis module

1	Carbon canister with leakage diagnosis module
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Tapping screws -3- > Tightening torque 2.4 Nm (1.75 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
4	Air line connection
5	Electric plug connection on leakage diagnosis module
6	Fuel line connection
7	Vent line connection

Carbon canister (RoW):

Fig 1: Carbon Canister Components Location With Torque Specification - Row

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister - RoW

1	Carbon canister - RoW
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Vent line connection
4	Air line connection
5	Fuel line connection

Carbon canister with leakage diagnosis module (ORVR):

Fig 2: Carbon Canister With Leakage Diagnosis Module Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister with leakage diagnosis module

1	Carbon canister with leakage diagnosis module
2	Screw, M6 -2- > Tightening torque 3 Nm (2 ftlb.)
3	Tapping screws -3- > Tightening torque 2.4 Nm (1.75 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
4	Air line connection
5	Electric plug connection on leakage diagnosis module
6	Fuel line connection
7	Vent line connection
