Exhaust Sensors

WARNING: This page is about a different variant/trim than selected.

Component overview

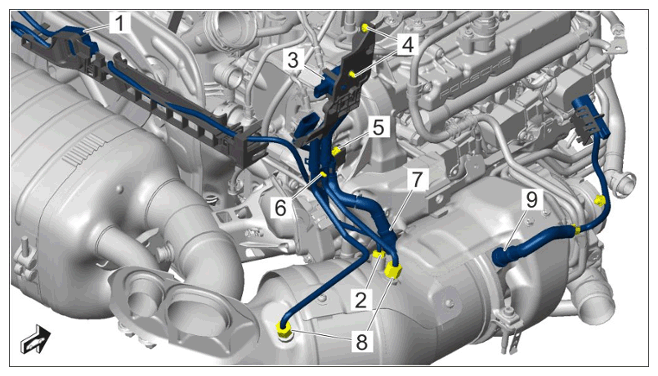

Fig 1: Overview Of Exhaust Sensor Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of exhaust sensor

1	Exhaust temperature sensor
2	Connection for exhaust pipe for exhaust temperature sensor > Tightening torque 35 Nm (26 ftlb.) +/- 10 %
3	Differential pressure sensor for particle filter
4	Screws for differential pressure sensor holder > Tightening torque 10 Nm (7.5 ftlb.)
5	Screw on holder for oxygen sensor cable > Tightening torque 10 Nm (7.5 ftlb.)
6	Collar nut on holder for exhaust pipes > Tightening torque 10 Nm (7.5 ftlb.)
7	> Tightening torque 48 Nm (36 ftlb.) +/- 4 Nm (3 ftlb.)
8	Cap screw for exhaust pipes on differential pressure sensor > Initial tightening 12 Nm (9 ftlb.) > Final tightening torque angle 90 Grad
9	> Tightening torque 48 Nm (36 ftlb.) +/- 4 Nm (3 ftlb.)

Component overview

Fig 1: Overview Of Exhaust Sensors Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of exhaust sensors

1	Exhaust temperature sensor
2	Connection for exhaust pipe for exhaust temperature sensor > Tightening torque 35 Nm (26 ftlb.) +/- 10 %
3	Differential pressure sensor for particle filter
4	Screws for differential pressure sensor holder > Tightening torque 10 Nm (7.5 ftlb.)
5	Screw on holder for oxygen sensor cable > Tightening torque 10 Nm (7.5 ftlb.)
6	Collar nut on holder for exhaust pipes > Tightening torque 10 Nm (7.5 ftlb.)
7	> Tightening torque 48 Nm (36 ftlb.) +/- 4 Nm (3 ftlb.)
8	Cap screw for exhaust pipes on differential pressure sensor > Initial tightening 12 Nm (9 ftlb.) > Final tightening torque angle 90 Grad
9	> Tightening torque 48 Nm (36 ftlb.) +/- 4 Nm (3 ftlb.)
