Packing Critical 12-Volt Lithium-Ion Battery

WARNING: This page is about a different variant/trim than selected.

Open metal container.

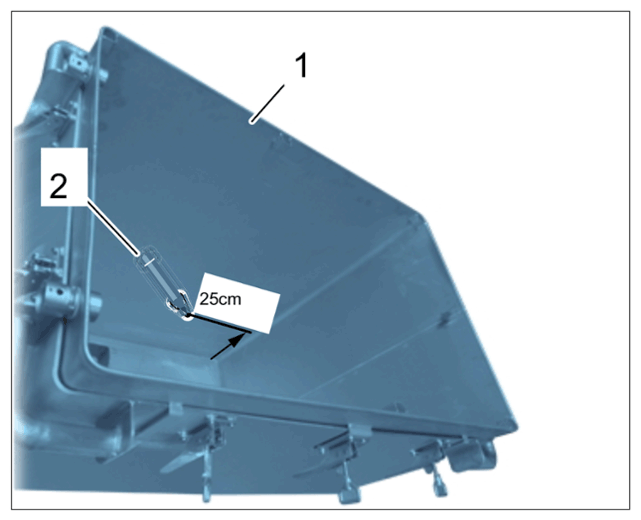

Measure 25 cm from the floor inside the metal container -1- and mark this on the container wall (inside) using a water-resistant marker -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Height marking (shown as an example)
Wear protective clothing, breathing mask as well as goggles and protective gloves.

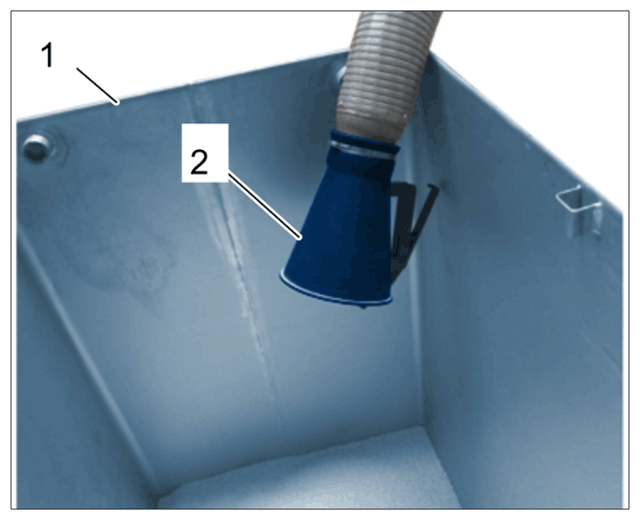

Position air extraction hose -2- in the metal container -1- in order to extract the dust and switch on the device.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Extraction (shown as an example)

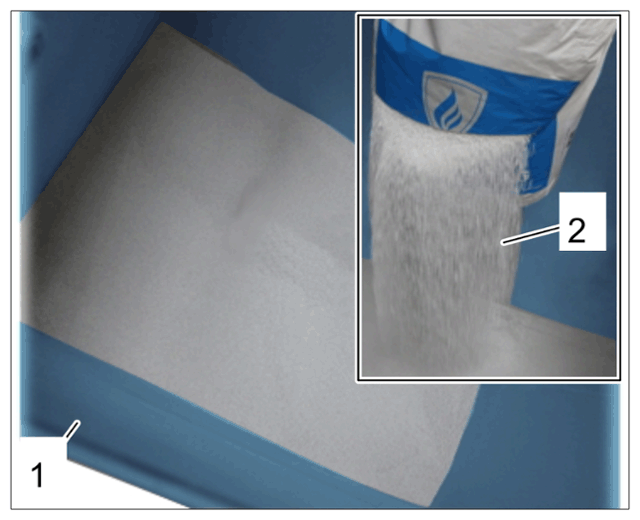

Fill hollow glass granulate -2- into the metal container -1- up to a height of 25 cm until the line marked on the inner wall of the container is completely covered by hollow glass granulate.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filling hollow glass granulate
Place battery on the hollow glass granulate in the metal container.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Placing battery in container

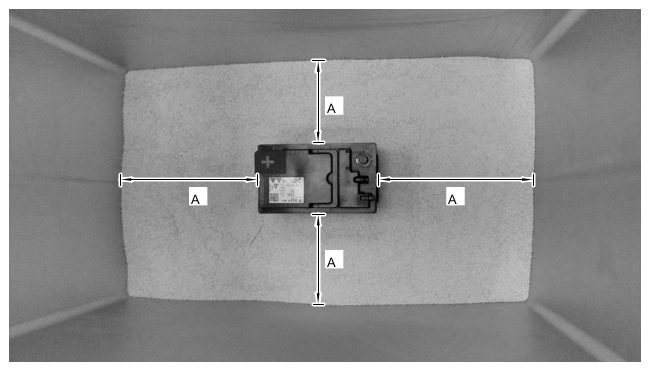

IMPORTANT: The distance -A- from the battery to the metal container must be at least 12 cm.

IMPORTANT: It must be possible to cover the battery with at least 25 cm of hollow glass granulate from above.

Information

IMPORTANT: The metal container must be completely filled with hollow glass granulate, right up to the top edge.

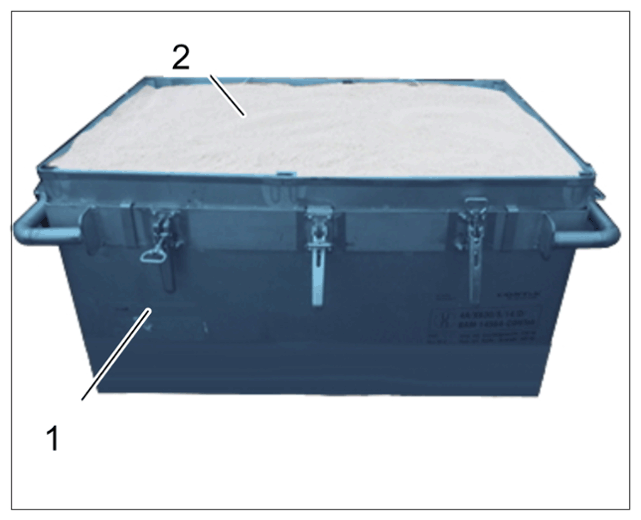

Fill the metal container up to the top edge with -1- hollow glass granulate -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filled metal container (shown as an example)
Close the metal container and secure it with the tension locks.

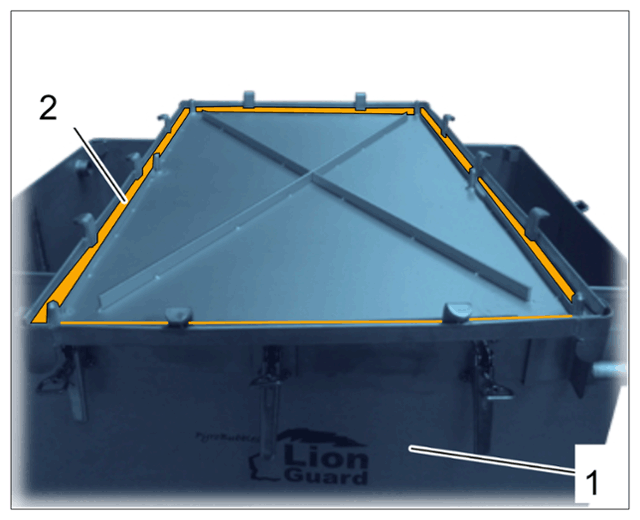

Visually inspect the lid seal on the -2- metal container -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Visual inspection (shown as an example)

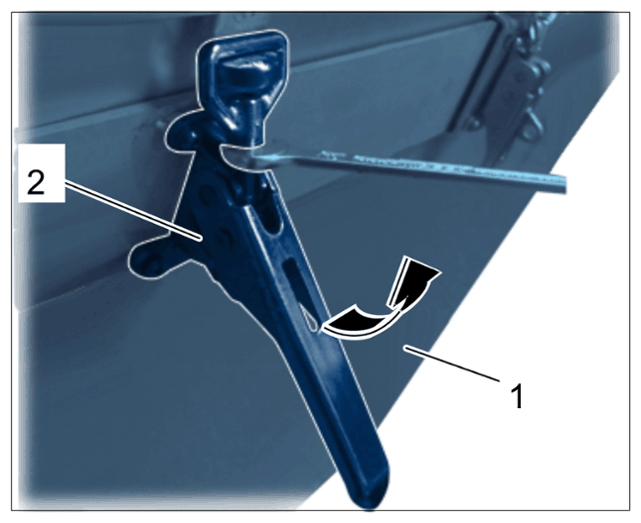

If necessary, adjust the tension locks -2- using a lock nut so that the metal container lid -1- is firmly sealed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjust tension looks.

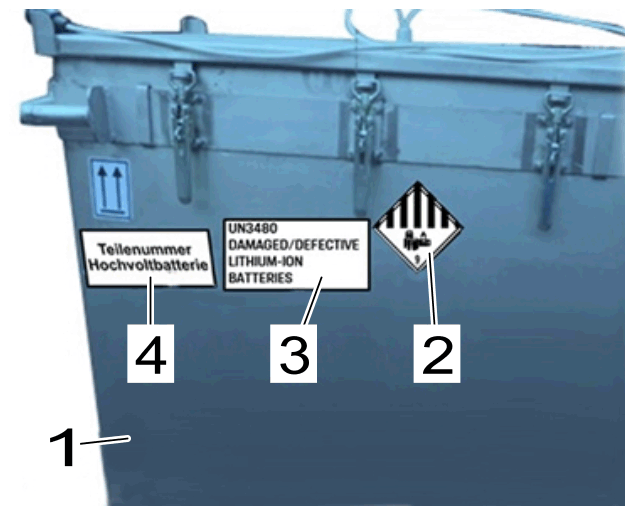

Affix hazardous goods sackers -2- to the long side of the metal container -1- in a clearly visible position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Labelling the metal container
Affix UN 3480 sticker -3- to the long side of the metal container -1- next to the hazardous goods sticker -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Labelling the metal container
Affix the part number (sticker) -4- of the battery to the long side of the metal container -1- next to the UN 3480 sticker -3- , or write it in clearly legible writing using a water-resistant marker.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Labelling the metal container
