Battery Trickle Charging

WARNING: This page is about a different variant/trim than selected.

NOTE: NOTIFICATION
Using charging cables/jump leads directly on the vehicle battery.

Risk of damage to battery sensor
→ Always connect charging cables/jump leads to the external power supply for jump-lead starting.

Information

When working or carrying out tests on the vehicle or when the vehicle is in the workshop, a battery charger with a current rating of at least 40 A must be connected.
As soon as the vehicle is unlocked, e.g. the vehicle is in the workshop or salesroom, it must be trickle-charged using a battery charger.
Charge voltage: 14.4 volts

Workshop equipment Battery chargers.

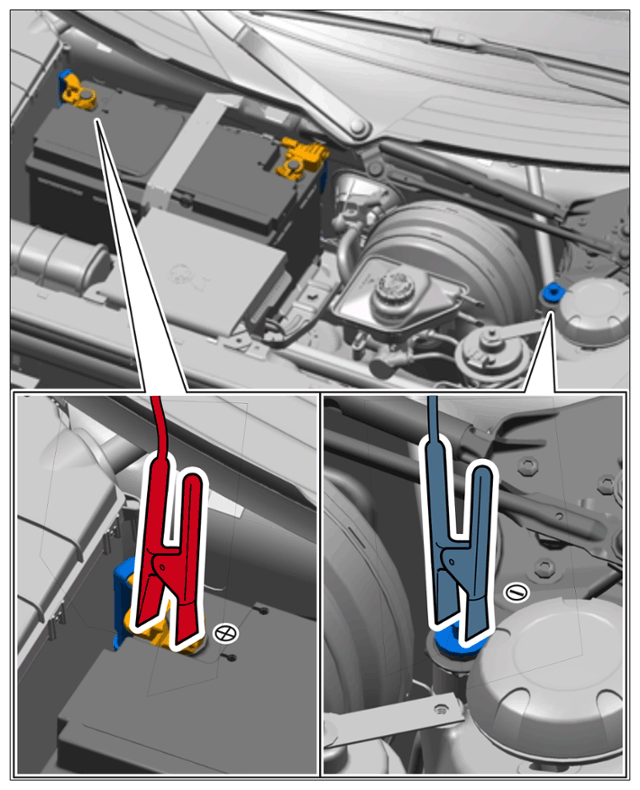

External power connection

1.1 First, connect the positive cable from the charger to the positive terminal -+- .

1.2 Then connect the negative cable from the charger to the ground point for jump lead starting - .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

External power connection
